Description
Product Overview

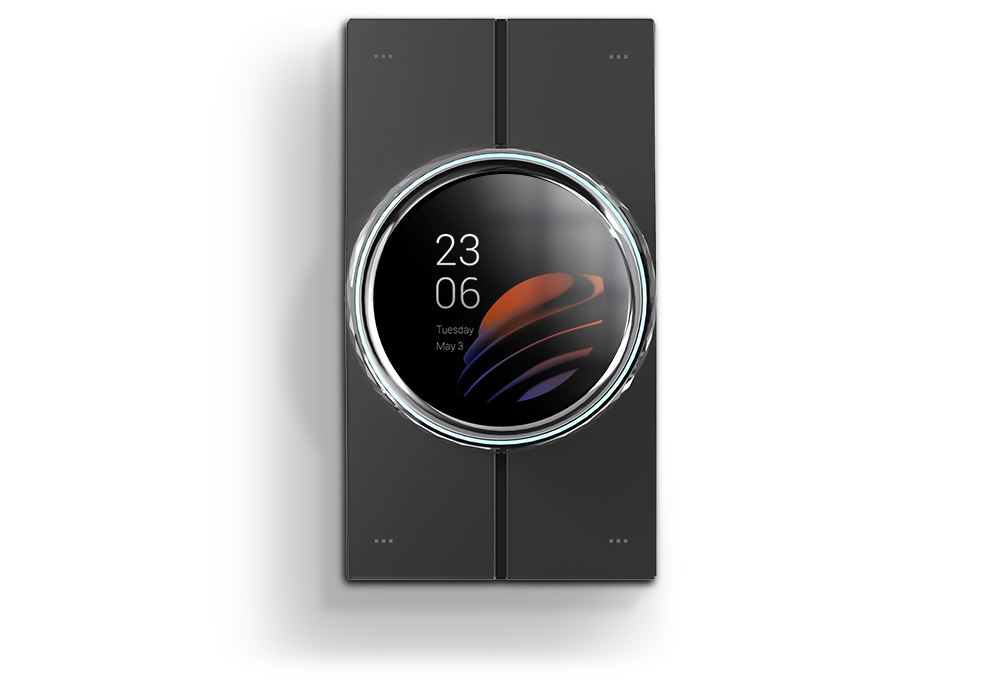

The Akubela HyPanel Lux RT61 is a premium smart home
control panel designed to combine elegant physical controls with
centralized home automation. It features a compact multi-touch display,
four AG-glass physical buttons and a metal rotary knob for intuitive
control of smart home functions.
Premium Control Interface
HyPanel Lux features a 2.1-inch multi-touch display
with a 480 × 480 pixel resolution. Four AG-glass
physical buttons and a metal knob provide convenient tactile control
alongside the touchscreen interface.
Metal Rotary Knob
The integrated metal rotary knob provides an intuitive
physical control method for compatible smart home functions. Its premium
design complements the AG-glass buttons and modern appearance of the
HyPanel Lux.
Smart Home Connectivity
- Wi-Fi 2.4 GHz / 5 GHz
- Bluetooth 4.2
- Zigbee 3.0
- 10/100 Mbps Ethernet
- RS485 support
The RT61 can act as a central interface for compatible smart home
devices and automation systems. The official specification lists
support for up to 128 Zigbee sub-devices.
Built-in Sensors
The HyPanel Lux incorporates multiple sensors to support intelligent
automation and user interaction, including:
- Proximity sensor
- Light sensor
- Temperature sensor
- Humidity sensor
- Gravity sensor
Voice & Audio
The RT61 includes built-in microphones and speakers for smart
communication and voice-related functions. The system can also support
smart intercom functionality when integrated with compatible systems.
Infrared Remote Control
The HyPanel Lux platform supports infrared remote control
functionality, allowing compatible IR-controlled equipment to be
integrated into the smart home environment.
Available Variants
- RT61-R2-EU – 2-gang relay configuration
- RT61-PoE-EU – IEEE 802.3af PoE & 12–24VDC
- RT61-D1-EU – 1-gang dimmer configuration
- RT61-D1-US – 1-gang dimmer, US backbox
The exact power supply and control functions depend on the selected
RT61 variant. Refer to the specific model suffix when ordering.
Technical Specifications
| Product | Akubela HyPanel Lux RT61 |
| Display | 2.1-inch Multi-Touch Screen |
| Resolution | 480 × 480 pixels |
| Operating System | Android 10 |
| Wi-Fi | 2.4 GHz / 5 GHz |
| Bluetooth | Bluetooth 4.2 |
| Zigbee | Zigbee 3.0 |
| Zigbee Capacity | Up to 128 sub-devices |
| Ethernet | 10/100 Mbps |
| Controls | 4 AG-glass buttons + 1 metal knob |
| Sensors | Proximity, Light, Temperature, Humidity & Gravity |
| Installation | Flush Wall Mount |
Ideal Applications
- Luxury Smart Homes
- Villas & Apartments
- Hotels & Hospitality
- Smart Offices
- Home Automation Projects
- Lighting & Climate Control
- Smart Intercom Systems
- Integrated Home Control
