Description

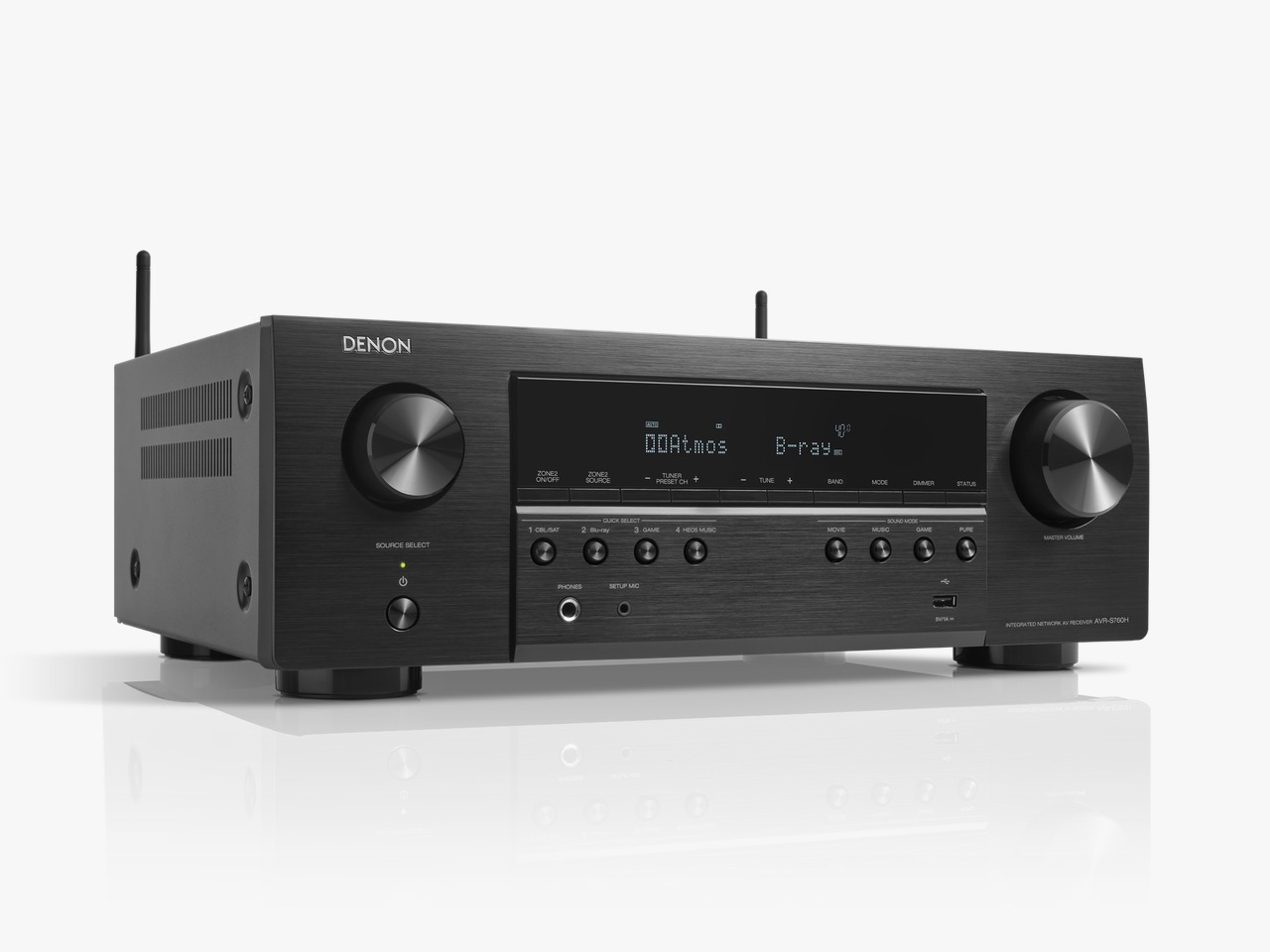

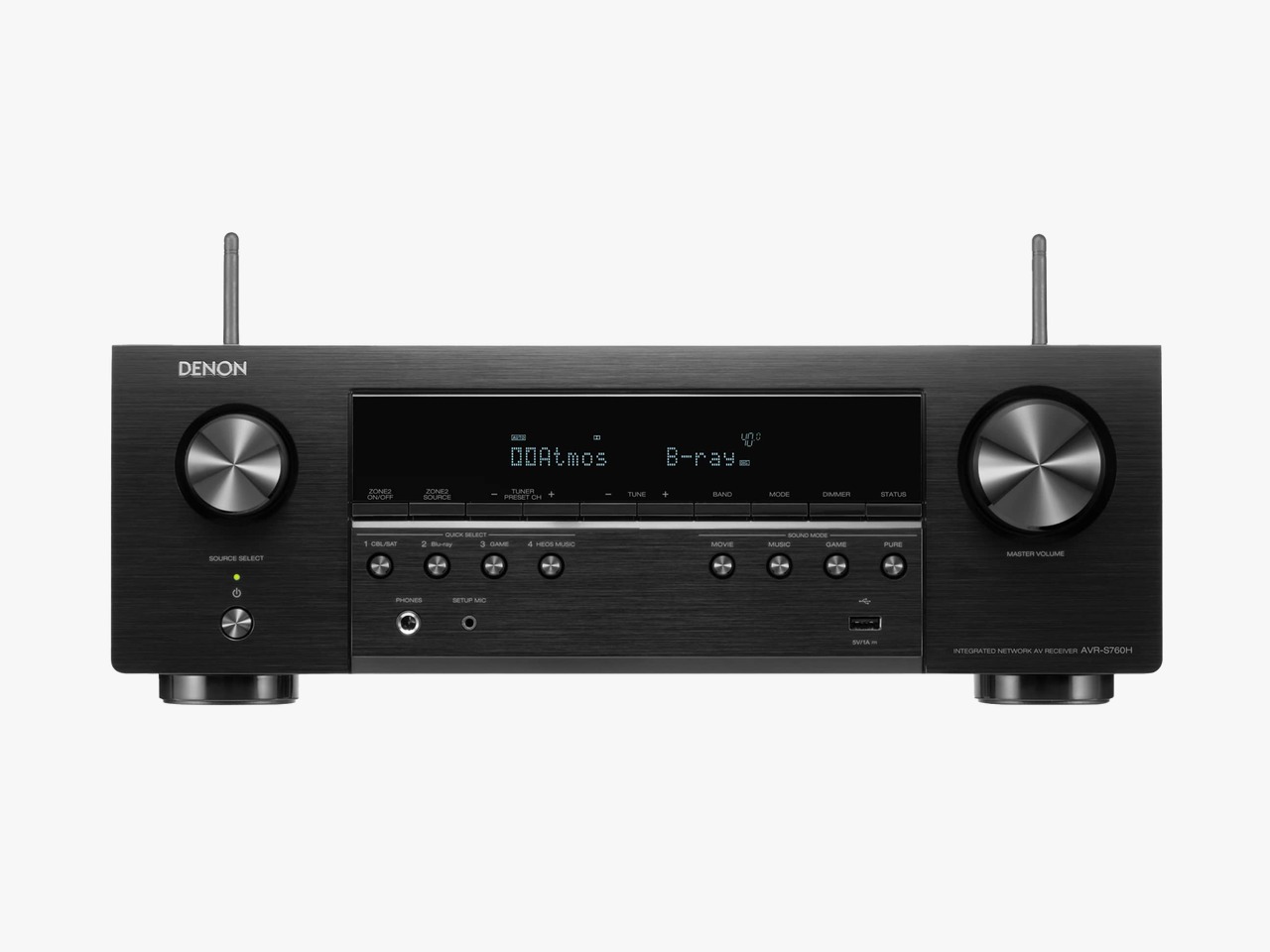

Denon AVR-S760H 7.2-Channel 8K AV Receiver
The Denon AVR-S760H is a 7.2-channel AV receiver designed for modern home theatre, gaming and high-quality music playback. It combines a discrete 7-channel amplifier section with advanced 8K HDMI connectivity, immersive 3D audio formats and HEOS Built-in for convenient network and multi-room audio.
The AVR-S760H delivers 75 watts per channel at 8 ohms from 20Hz to 20kHz with 0.08% THD under Denon’s rated two-channel conditions. It supports speakers with impedance from 4 to 16 ohms and features seven discrete power amplifiers. Two subwoofer outputs provide flexibility for dual-subwoofer home theatre configurations.
For immersive cinema sound, the receiver supports Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X and DTS Virtual:X, along with Dolby TrueHD and DTS-HD Master Audio. These formats provide compatibility with modern Blu-ray, streaming and home cinema content.
Audyssey MultEQ XT room correction automatically measures the acoustic characteristics of the listening environment and helps optimize the connected speaker system. The receiver also provides bass management and adjustable crossover functionality for flexible system configuration.

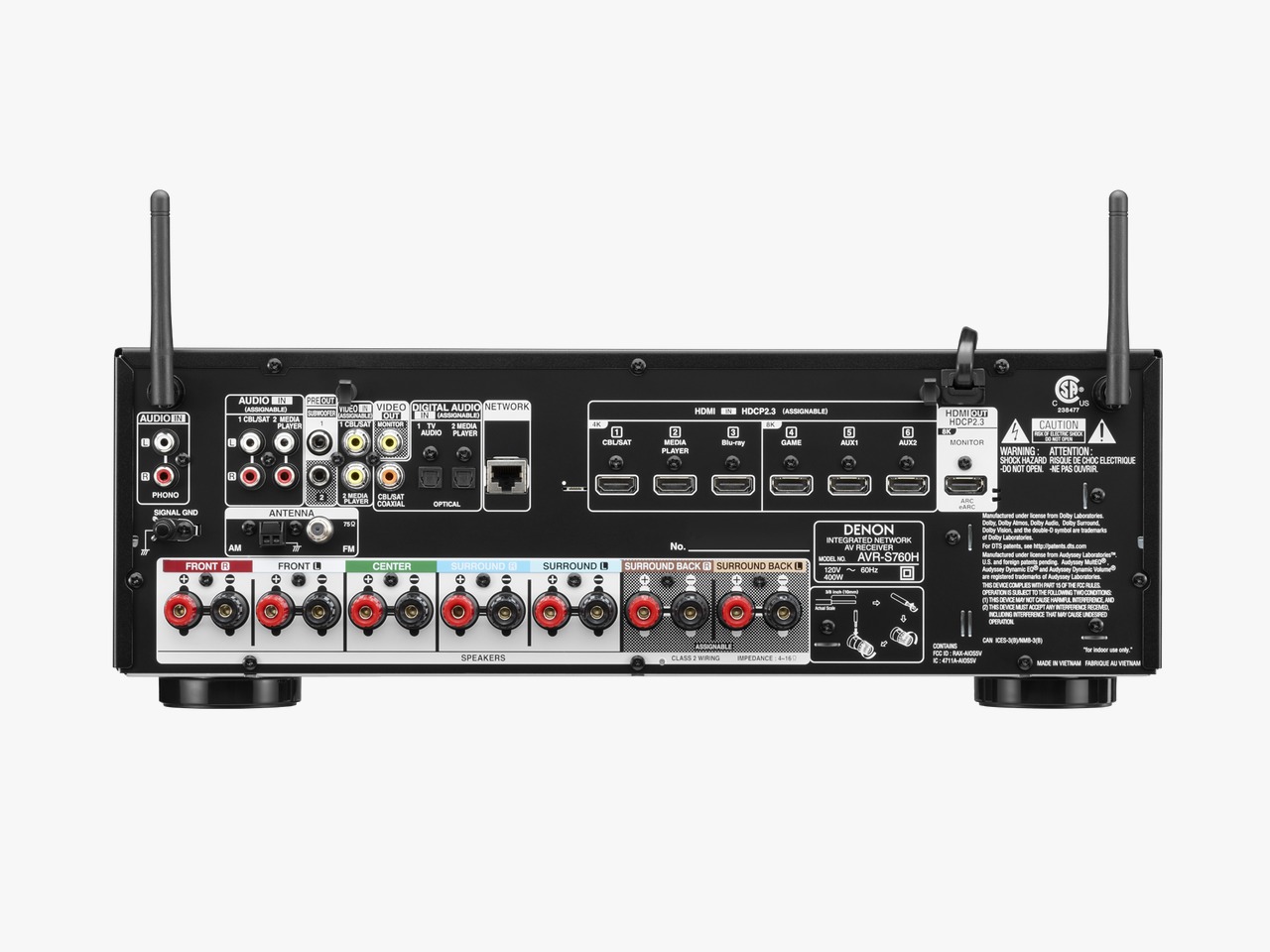

The AVR-S760H features six HDMI inputs, including three 8K-capable inputs, and one HDMI output with eARC. It supports 8K/60Hz and select 4K/120Hz pass-through, as well as 8K upscaling of compatible 4K content. HDR compatibility includes Dolby Vision, HDR10+, HDR10 and HLG.
Gaming features include Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), helping provide compatibility with modern gaming consoles and high-refresh-rate displays.
HEOS Built-in provides network music streaming and multi-room audio functionality. Apple AirPlay 2, Bluetooth and Wi-Fi provide additional wireless playback options, while Ethernet allows wired network connectivity. The receiver is also Roon Tested for compatible network music systems.
High-resolution music playback is supported through compatible network and USB sources, while the integrated phono input allows direct connection of a compatible turntable. Zone 2 functionality provides additional flexibility for multi-room audio applications.
With its 7.2-channel architecture, 75W-per-channel amplification, immersive 3D audio, 8K HDMI connectivity, HEOS streaming and room correction, the Denon AVR-S760H is well suited to living-room home theatres, gaming systems, dedicated cinema rooms and versatile music setups.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | AVR-S760H |
| Product Type | 7.2-Channel 8K AV Receiver |
| Number of Power Amplifiers | 7 |
| Rated Power Output | 75W + 75W at 8Ω, 20Hz–20kHz, 0.08% THD |
| Additional Power Output | 110W/channel at 6Ω, 1kHz, 0.7% THD; 140W/channel at 6Ω, 1kHz, 1% THD, 1-channel driven |
| Speaker Impedance | 4–16Ω |
| Frequency Response | 10Hz–100kHz, +1/−3dB (Direct Mode) |
| Signal-to-Noise Ratio | 98dB (IHF-A weighted, Direct Mode) |
| Subwoofer Outputs | 2 |
| Audio Formats | Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X, Dolby TrueHD, DTS-HD Master Audio |
| Room Correction | Audyssey MultEQ XT |
| HDMI Inputs | 6 |
| 8K HDMI Inputs | 3 |
| HDMI Outputs | 1 with eARC |
| Video Pass-Through | 8K/60Hz and select 4K/120Hz |
| 8K Upscaling | Yes |
| HDR Support | Dolby Vision, HDR10+, HDR10 and HLG |
| Gaming Features | VRR, ALLM and QFT |
| High-Resolution Audio | High-resolution network and USB audio playback |
| Wireless Connectivity | Wi-Fi, Bluetooth and Apple AirPlay 2 |
| Multi-Room Audio | HEOS Built-in |
| Network Connectivity | Ethernet and Wi-Fi |
| Streaming | HEOS, Spotify Connect, AirPlay 2 and network streaming |
| Roon | Roon Tested |
| Phono Input | Yes |
| USB Input | Front USB |
| Zone 2 | Yes, speaker assignable |
| Dimensions with Antenna | 434 × 339 × 215 mm (W × D × H) |
| Dimensions without Antenna | 434 × 339 × 151 mm (W × D × H) |
| Weight | 8.6 kg |
| Power Supply | AC 230V, 50Hz |
Key Features
- 7.2-Channel Amplification: Seven discrete power amplifiers provide 75W per channel at 8 ohms under Denon’s rated conditions.
- Immersive 3D Audio: Supports Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X and DTS Virtual:X.
- 8K HDMI Connectivity: Six HDMI inputs include three 8K-capable inputs for modern AV sources.
- 8K & 4K/120Hz Support: Supports 8K/60Hz and select 4K/120Hz pass-through with compatible sources and displays.
- Advanced HDR: Supports Dolby Vision, HDR10+, HDR10 and HLG.
- Audyssey MultEQ XT: Provides automatic room measurement and speaker calibration.
- HEOS Built-in: Enables network music streaming and multi-room audio with compatible HEOS products.
- AirPlay 2 & Bluetooth: Provides convenient wireless music playback from compatible devices.
- Gaming Features: Supports VRR, ALLM and QFT for compatible gaming systems.
- Dual Subwoofer Outputs: Allows two subwoofers to be integrated into the home theatre system.
- Phono Input: Allows direct connection of a compatible turntable.
- Zone 2: Provides speaker-assignable multi-room audio functionality.
Ideal For
- 7.2-Channel Home Theatre Systems
- Dolby Atmos Home Cinema
- 8K TV & Projector Setups
- Gaming Home Theatre Systems
- HEOS Multi-Room Audio Systems
- High-Resolution Music Playback
- Living Room Entertainment Systems
- Dedicated Home Cinema Installations
- Vinyl & Turntable Systems
