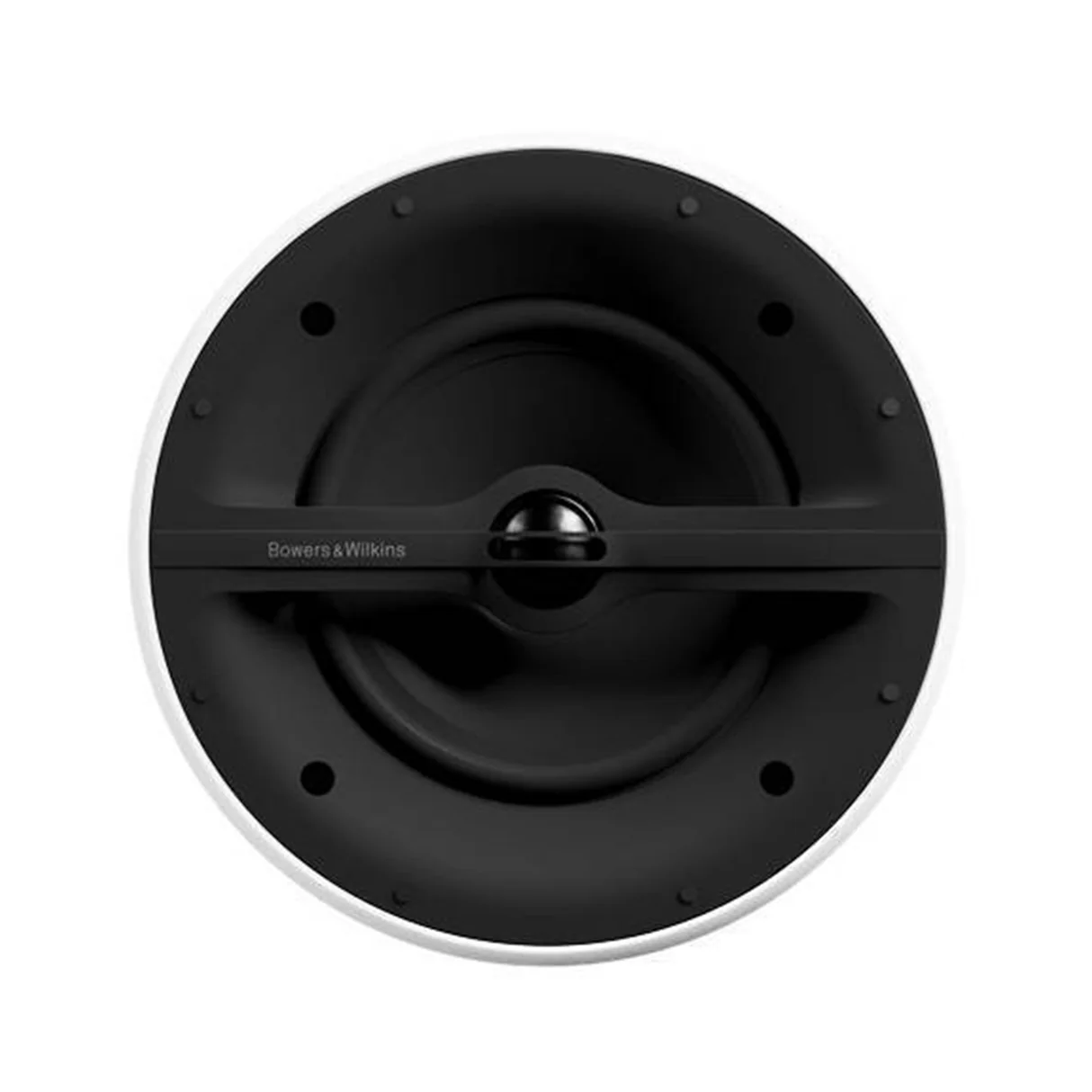

Bowers & Wilkins CCM362 In-Ceiling Speaker

The Bowers & Wilkins CCM362 is a flexible 2-way in-ceiling architectural speaker designed to deliver detailed, balanced and natural sound while maintaining a discreet appearance. Its shallow-form construction makes it particularly suitable for custom home theatre, whole-home audio, multi-room music and residential architectural audio installations.

The CCM362 features a 6-inch (160 mm) polypropylene cone bass/midrange driver. The polypropylene cone is designed to provide smooth and controlled reproduction across the low and mid-frequency range, making the speaker suitable for music playback as well as movie dialogue and effects.

High-frequency reproduction is handled by a 1-inch (25 mm) soft-dome tweeter. The tweeter is integrated coaxially with the bass/midrange driver to provide a balanced soundstage from a single ceiling location and maintain broad listening coverage.

The CCM362 is engineered for wide-angle listening, which is particularly important for ceiling-mounted speakers. Its coaxial driver arrangement helps provide consistent sound across a broad listening area rather than restricting the optimal listening position to a narrow area.

The speaker delivers a 50 Hz–30 kHz frequency range at -6 dB and a sensitivity of 89 dB SPL at 2.83 V / 1 m. With an 8-ohm nominal impedance and 5-ohm minimum impedance, it can be integrated with a wide range of compatible AV receivers, stereo amplifiers and custom-installation amplifiers.

With 80 watts power handling, the CCM362 is suitable for residential home theatre and distributed audio systems. Its efficient 89 dB sensitivity allows it to achieve useful output levels without requiring excessive amplifier power.

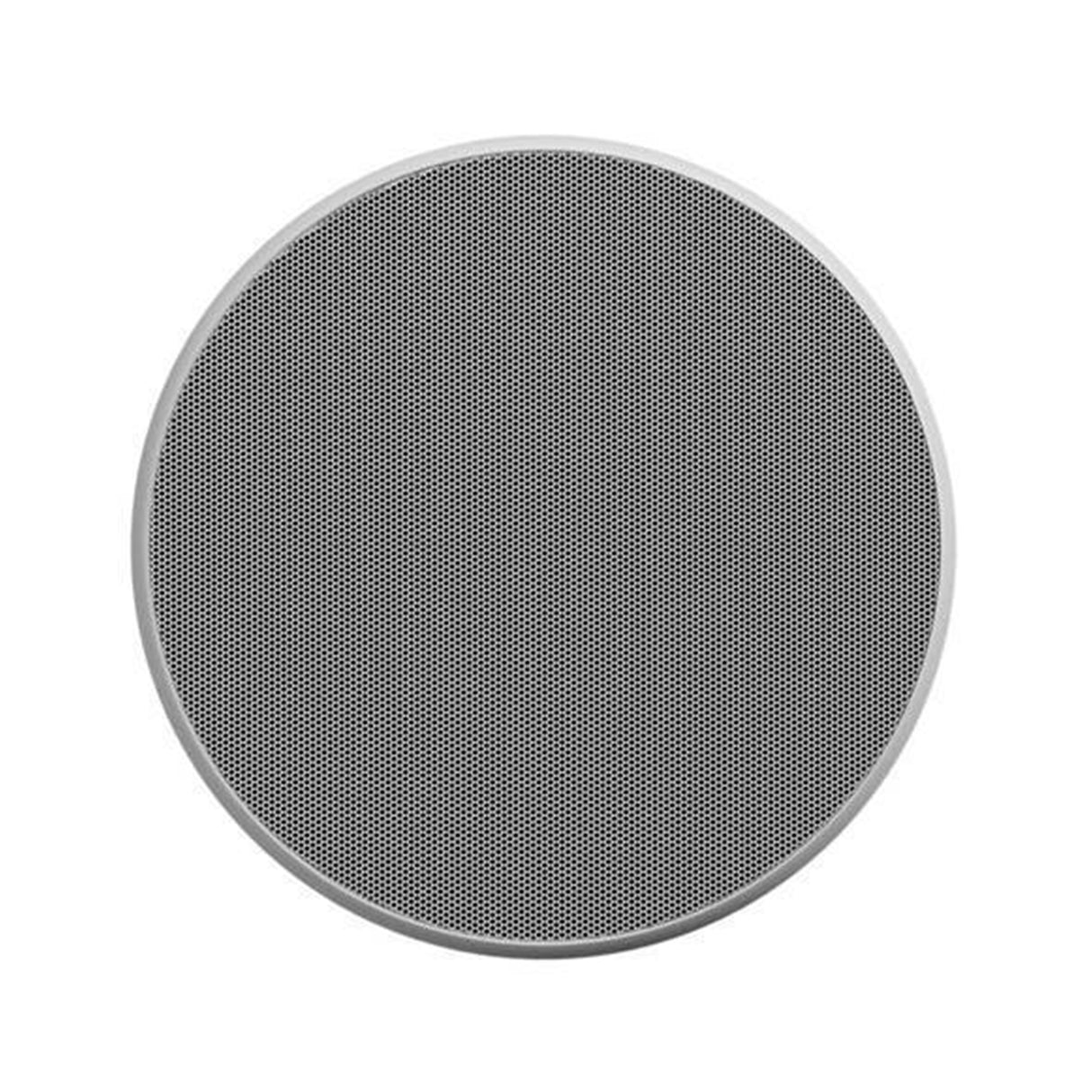

The CCM362 features a shallow-form architectural design, making it useful in installations where available ceiling depth is limited. The speaker is available with either a round or square grille appearance, providing additional flexibility when matching the speaker to the interior design.

For professional installation, Bowers & Wilkins specifies the PMK C6 pre-mount kit and BB 6C back box as compatible installation accessories. These accessories can assist with installation planning and provide a more controlled acoustic enclosure where required.

The CCM362 is available in a discreet white finish, and its architectural grille can be integrated into the ceiling with minimal visual distraction. Its combination of shallow depth, coaxial driver arrangement and wide-angle performance makes it suitable for both new construction and custom retrofit projects.

The Bowers & Wilkins CCM362 is an excellent choice for whole-home music, multi-room audio, home theatre surround channels, media rooms, living rooms and other custom architectural audio installations where high-quality sound and discreet ceiling integration are important.

• 6-Inch Polypropylene Bass/Midrange Driver: Provides smooth and controlled low- and mid-frequency reproduction.
• 1-Inch Soft-Dome Tweeter: Delivers detailed and natural high-frequency performance.
• 2-Way Coaxial Design: Combines the bass/midrange driver and tweeter into a single compact ceiling speaker.
• Wide-Angle Listening: Designed to provide balanced sound across a broad listening area.
• 50 Hz–30 kHz Frequency Range: Provides broad frequency reproduction for music and home theatre.
• 89 dB Sensitivity: Provides efficient operation with compatible AV receivers and amplifiers.
• 80 W Power Handling: Suitable for residential home theatre and distributed audio systems.
• 8-Ohm Nominal Impedance: Allows straightforward integration with a wide range of amplification equipment.
• Shallow-Form Design: Suitable for installations where available ceiling depth is limited.
• Round or Square Grille: Provides architectural flexibility for different interior designs.
• Professional Installation Accessories: Compatible with PMK C6 pre-mount kit and BB 6C back box.

• Premium Home Theatre Systems
• Surround Sound Systems
• Whole-Home Audio
• Multi-Room Music
• Living Rooms
• Media Rooms
• Bedrooms
• Distributed Audio
• Custom Architectural Audio
• Residential AV Installations
