Description

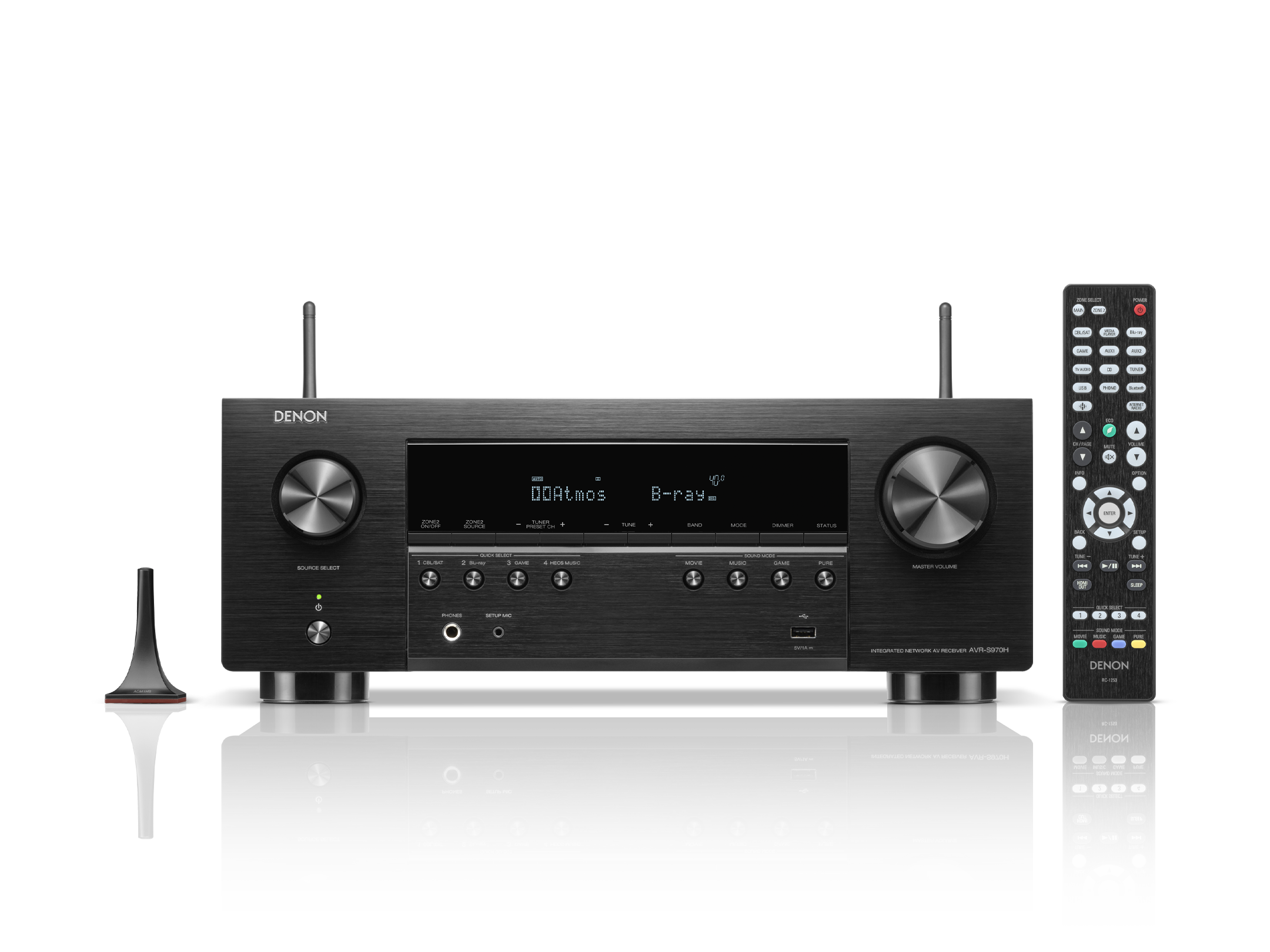

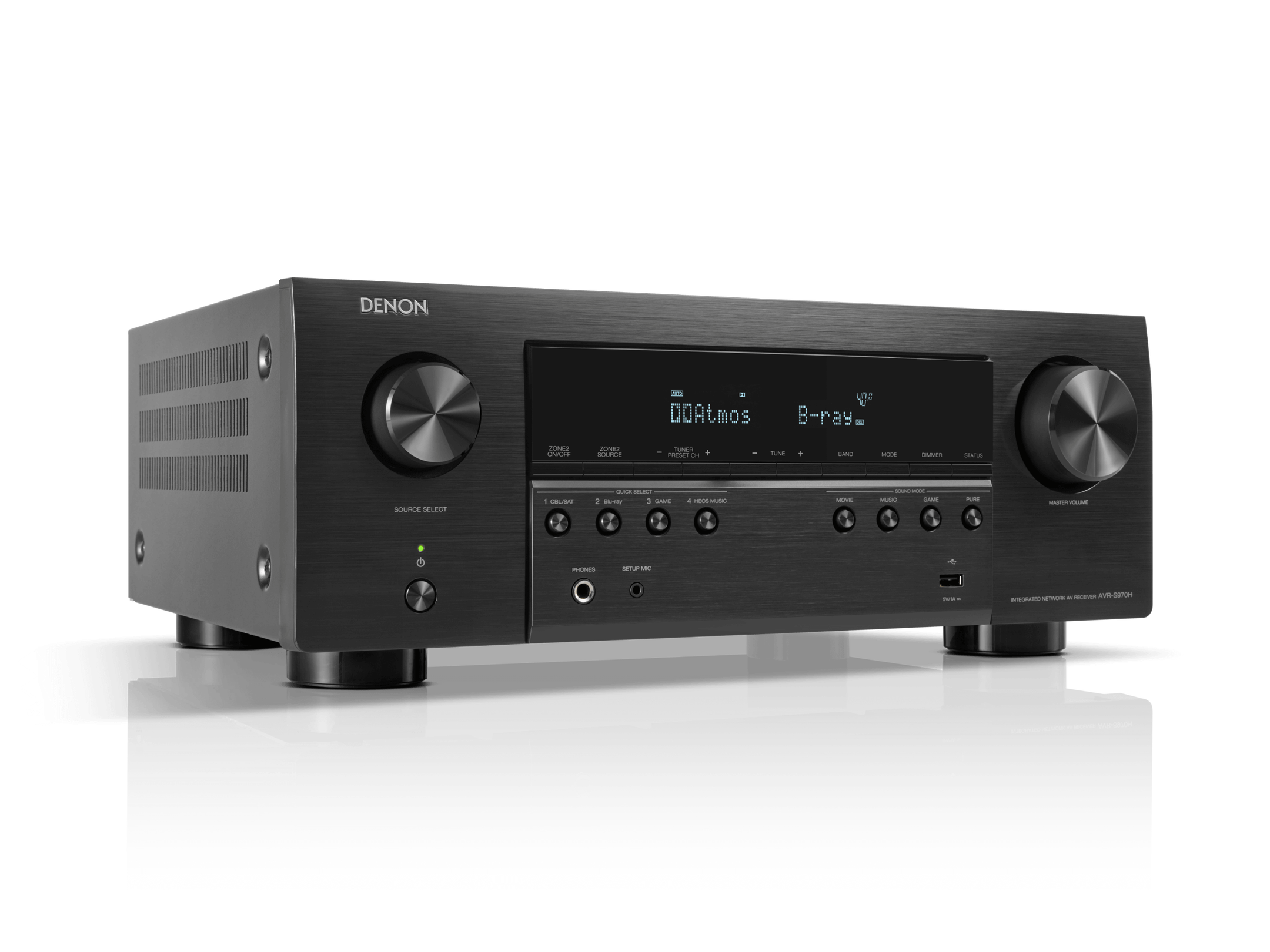

Denon AVR-S970H 7.2-Channel 8K AV Receiver
The Denon AVR-S970H is a 7.2-channel AV receiver designed for immersive home theatre, high-resolution music playback and advanced 8K video entertainment. With seven discrete power amplifiers delivering up to 90 watts per channel, it provides a flexible foundation for 7.2-channel and 5.2.2 Dolby Atmos home theatre configurations.
The Class AB amplifier section delivers 90W per channel at 8 ohms from 20Hz to 20kHz with 0.08% THD when two channels are driven. It can also deliver 125W per channel at 6 ohms, 1kHz and 0.7% THD. The speaker outputs support 4–16 ohm loads, allowing integration with a wide variety of home theatre loudspeakers.
For immersive cinema sound, the AVR-S970H supports Dolby Atmos and DTS:X. DTS Virtual:X provides virtualized surround and height effects, while Dolby TrueHD and DTS-HD Master Audio support high-quality lossless movie soundtracks. Dolby Surround and DTS Neural:X upmixing can also expand compatible legacy content across available speakers.
Audyssey MultEQ room calibration uses a supplied measurement microphone to analyze the listening environment and optimize speaker response. Two independent subwoofer outputs provide flexible bass-management options for 7.2-channel installations.
The AVR-S970H supports high-resolution audio playback including FLAC, ALAC and WAV files up to 24-bit/192kHz, along with DSD audio streaming. HEOS Built-in provides network music streaming and multi-room audio, while Apple AirPlay 2, Wi-Fi and Bluetooth provide convenient wireless playback options.
For modern video sources, the AVR-S970H provides six HDMI inputs and two HDMI outputs. Three HDMI inputs and one HDMI output support 8K/60Hz and 4K/120Hz video signals. HDCP 2.3 compatibility and support for HDR10+, HDR10, Dolby Vision, Dynamic HDR and HLG provide compatibility with modern high-dynamic-range displays and sources.
Gaming features include Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), helping support smooth and responsive gaming with compatible consoles, PCs and displays.
The receiver also supports two-zone audio functionality, HDMI diagnostics, web control and app control. Its combination of 7-channel amplification, immersive audio processing, Audyssey room calibration, 8K HDMI connectivity and HEOS streaming makes the AVR-S970H well suited to medium-sized home theatres, media rooms, gaming systems and custom AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | AVR-S970H |
| Product Type | 7.2-Channel 8K AV Receiver |
| Number of Power Amplifiers | 7 |
| Processing Channels | 7.1 channels |
| Rated Power Output | 90W/channel at 8Ω, 20Hz–20kHz, 0.08% THD, 2-channel driven |
| Power Output at 6Ω | 125W/channel at 6Ω, 1kHz, 0.7% THD, 2-channel driven |
| Maximum Power Output | 185W/channel at 6Ω, 1kHz, 10% THD, 1-channel driven |
| Speaker Impedance | 4–16Ω |
| Amplifier Design | Class AB |
| Frequency Response | 10Hz–100kHz (+1, −3dB, Direct Mode) |
| Signal-to-Noise Ratio | 100dB, IHF-A weighted, Direct Mode |
| Audio Formats | Dolby Atmos, DTS:X, DTS Virtual:X, Dolby TrueHD, DTS-HD Master Audio |
| High-Resolution Audio | FLAC, ALAC and WAV up to 24-bit/192kHz; DSD 2.8/5.6MHz |
| Room Correction | Audyssey MultEQ |

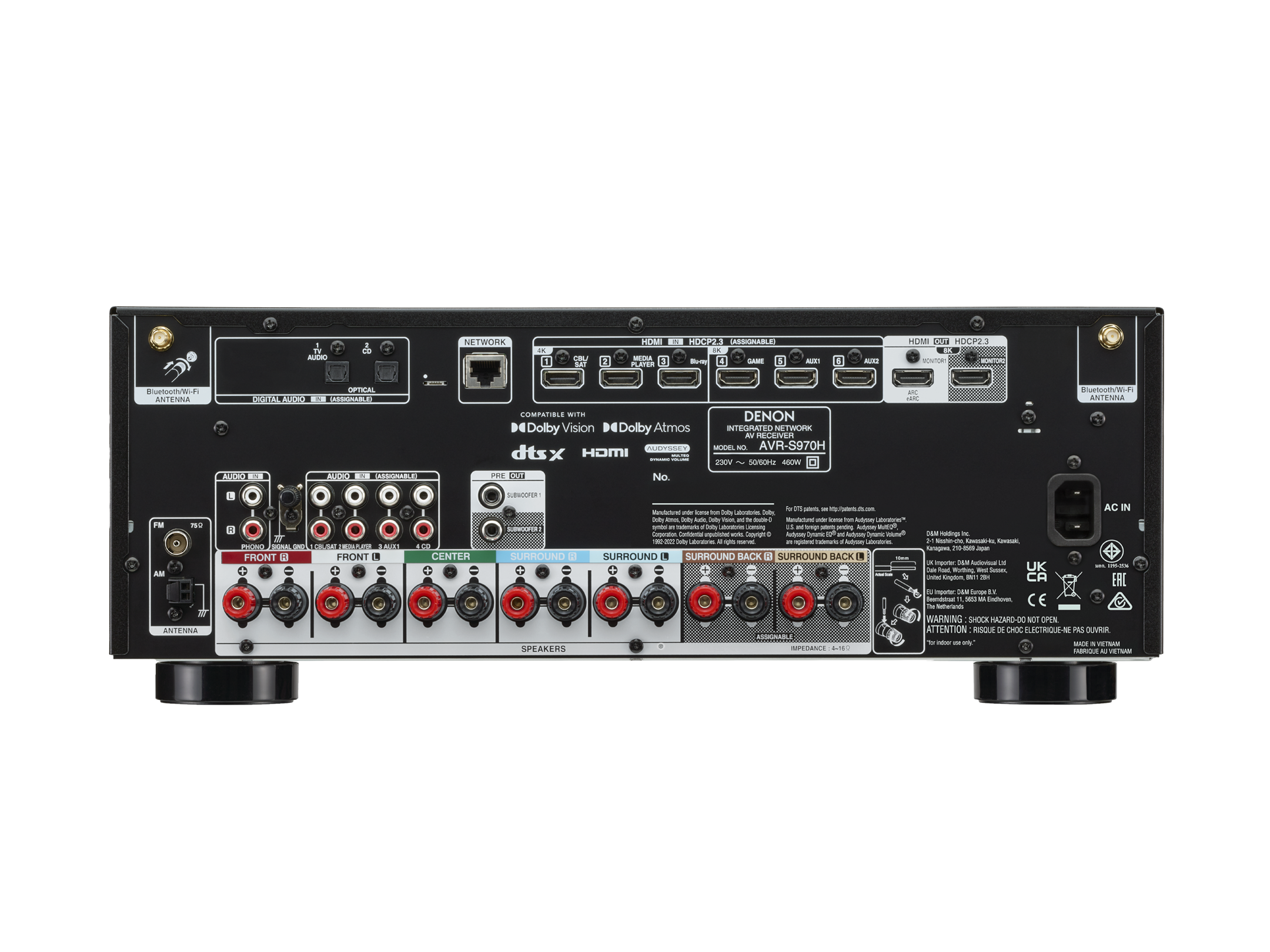

| HDMI Inputs | 6, including 3 × 8K-capable HDMI inputs |
| HDMI Outputs | 2, including 1 × eARC |
| HDMI Video Pass-Through | 8K/60Hz and 4K/120Hz |
| HDCP | HDCP 2.3 |
| HDR Support | HDR10+, HDR10, Dolby Vision, Dynamic HDR and HLG |
| Gaming Features | VRR, ALLM and QFT |
| Subwoofer Outputs | 2 |
| Speaker Terminals | 7 |
| Phono Input | MM |
| Digital Inputs | 2 × Optical, 1 × Coaxial |
| Analog Inputs | 4 |
| Wireless Connectivity | Wi-Fi, Bluetooth and Apple AirPlay 2 |
| Streaming | HEOS Built-in, Spotify Connect, TIDAL and Internet Radio |
| Multi-Room | HEOS multi-room audio; 2-zone audio |
| Setup | Audyssey MultEQ automatic speaker setup and Denon Setup Assistant |
| Control | App Control and Web Control |
| Dimensions with Antenna Horizontal | 434 × 340 × 168 mm (W × D × H) |
| Dimensions with Antenna Vertical | 434 × 340 × 236 mm (W × D × H) |
| Weight | 9.5 kg |
Key Features
- 7.2-Channel Amplification: Seven discrete Class AB amplifiers deliver 90W per channel at 8Ω under specified conditions.
- Dolby Atmos & DTS:X: Supports immersive object-based audio for compatible home theatre soundtracks.
- 8K HDMI Connectivity: Six HDMI inputs include three 8K-capable inputs for modern video sources.
- 4K/120Hz & 8K/60Hz: Supports high-frame-rate 4K and 8K video pass-through with compatible equipment.
- Audyssey MultEQ: Automatic room calibration helps optimize speaker performance for the listening environment.
- Dual Subwoofer Outputs: Two subwoofer outputs provide flexible bass-management options for 7.2-channel systems.
- HEOS Built-in: Enables network music streaming and multi-room audio with compatible HEOS products.
- High-Resolution Audio: Supports FLAC, ALAC and WAV up to 24-bit/192kHz, plus DSD streaming.
- Gaming Connectivity: VRR, ALLM and QFT support smooth gaming with compatible equipment.
- Wireless Streaming: Wi-Fi, Bluetooth and Apple AirPlay 2 provide flexible music playback options.
Ideal For
- 7.2-Channel Home Theatre Systems
- Dolby Atmos Home Cinema
- 5.2.2 Surround Sound Systems
- 8K Home Theatre Installations
- Gaming & Entertainment Systems
- Medium-Sized Media Rooms
- High-Resolution Music Systems
- HEOS Multi-Room Audio Systems
- Custom AV Installations
