Description

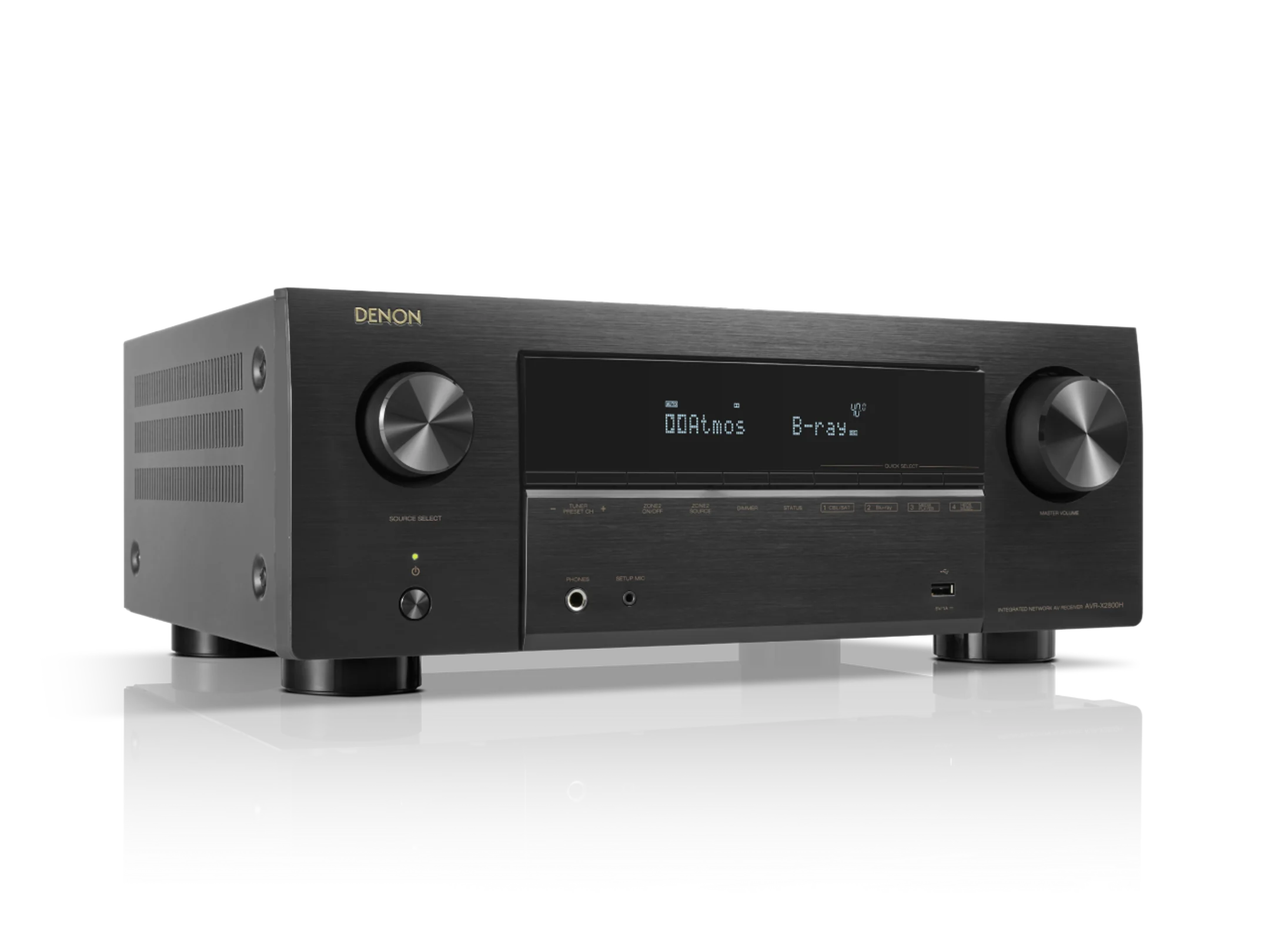

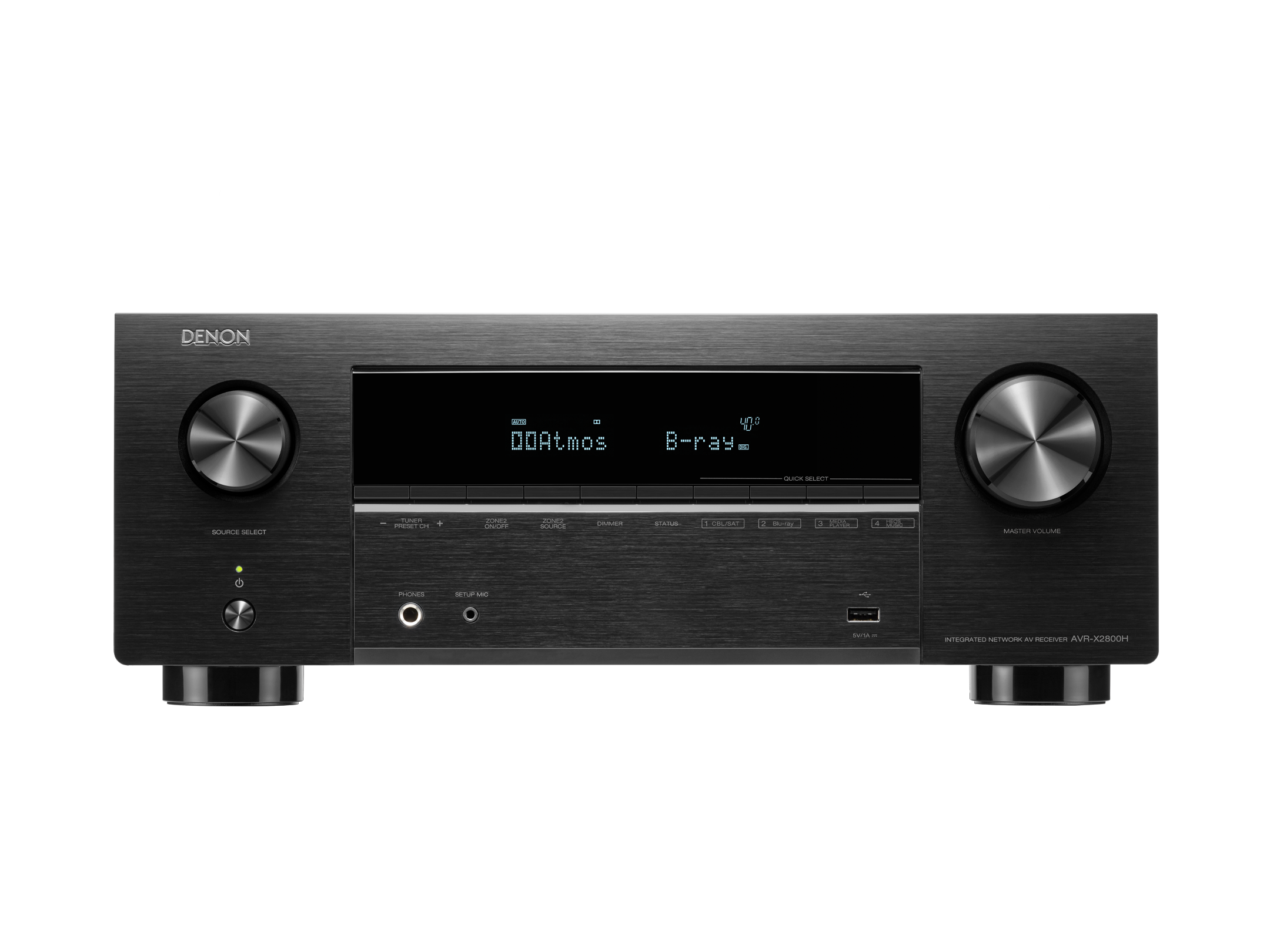

Denon AVR-X2800H 7.2-Channel 8K AV Receiver
The Denon AVR-X2800H is a 7.2-channel AV receiver designed to deliver immersive home theatre performance, high-resolution music playback and flexible connectivity for modern entertainment systems. Its seven-channel Class AB amplifier section provides 95 watts per channel at 8 ohms, making it suitable for a wide range of home theatre speaker configurations.
The receiver delivers 95W per channel at 8 ohms, 20Hz–20kHz with 0.05% THD under the specified 2-channel driven condition. Speaker impedance compatibility from 4 to 16 ohms provides installation flexibility with different home theatre and Hi-Fi loudspeakers.
For immersive cinema sound, the AVR-X2800H supports Dolby Atmos and DTS:X, allowing compatible soundtracks to create three-dimensional surround effects with overhead or height speakers. Dolby TrueHD, DTS-HD Master Audio and multi-channel PCM are also supported for high-quality digital audio reproduction.
Audyssey MultEQ XT32 room correction measures the listening environment and adjusts the system to help achieve balanced performance throughout the room. The receiver also provides two independent subwoofer outputs for flexible low-frequency system configuration.
High-resolution music playback is supported through ALAC, FLAC, WAV and AIFF files up to 24-bit/192kHz. HEOS Built-in provides access to network music streaming and multi-room audio, while Apple AirPlay 2, Wi-Fi and Bluetooth provide additional wireless playback options.
For modern video systems, the AVR-X2800H provides six HDMI inputs and three HDMI outputs. HDMI 2.1 connectivity supports 8K/60Hz and 4K/120Hz video pass-through with compatible sources and displays. HDCP 2.3 and HDR formats including Dolby Vision, HDR10+, HDR10 and HLG provide compatibility with modern home entertainment equipment.
The AVR-X2800H combines immersive audio processing, high-resolution music support, 8K video connectivity, advanced room correction and HEOS streaming in a practical 7.2-channel platform. It is well suited to home theatres, media rooms, gaming systems and custom AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | AVR-X2800H |
| Product Type | 7.2-Channel 8K AV Receiver |
| Number of Power Amplifiers | 7 |
| Channel Configuration | 7.2 channels |
| Rated Power Output | 95W/channel at 8Ω, 20Hz–20kHz, 0.05% THD |
| Amplifier Design | Class AB |
| Speaker Impedance | 4–16Ω |
| Audio Formats | Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Multi-channel PCM |
| High-Resolution Audio | ALAC, FLAC, WAV and AIFF up to 24-bit/192kHz |
| Room Correction | Audyssey MultEQ XT32 |
| HDMI Inputs | 6 |
| HDMI Outputs | 3, including 1 × eARC |
| HDMI Standard | HDMI 2.1 |
| HDMI Video Pass-Through | 8K/60Hz and 4K/120Hz |
| HDCP | HDCP 2.3 |
| HDR Support | Dolby Vision, HDR10+, HDR10 and HLG |
| Subwoofer Outputs | 2 |
| Speaker Terminals | 7 |
| Wireless Connectivity | Wi-Fi, Bluetooth and Apple AirPlay 2 |
| Multi-Room / Streaming | HEOS Built-in |
| Video Processing | 8K video support and upscaling |
| Dimensions with Antenna Vertical | 434 × 341 × 237 mm (W × D × H) |
| Weight | 9.5 kg |
Key Features
- 7.2-Channel Amplification: Seven channels of Class AB amplification deliver 95W per channel at 8Ω under specified conditions.
- Dolby Atmos & DTS:X: Supports immersive object-based audio formats for compatible home theatre soundtracks.
- 8K HDMI Connectivity: Six HDMI inputs provide connectivity for modern 8K-capable sources and displays.
- 4K/120Hz & 8K/60Hz: Supports high-frame-rate and 8K video pass-through with compatible equipment.
- Audyssey MultEQ XT32: Advanced room correction helps calibrate the system according to the listening environment.
- Two Subwoofer Outputs: Provides flexible bass-management options for 7.2-channel installations.
- High-Resolution Audio: Supports ALAC, FLAC, WAV and AIFF files up to 24-bit/192kHz.
- HEOS Built-in: Enables network music streaming and multi-room audio functionality.
- Wireless Streaming: Supports Apple AirPlay 2, Bluetooth and Wi-Fi connectivity.
- HDR Compatibility: Supports Dolby Vision, HDR10+, HDR10 and HLG for compatible displays and sources.
Ideal For
- Home Theatre Systems
- Dolby Atmos Home Cinema
- 7.2-Channel Surround Sound Systems
- 8K Home Theatre Installations
- Gaming & Entertainment Systems
- Premium Media Rooms
- Hi-Fi Music and AV Systems
- Custom AV Installations
