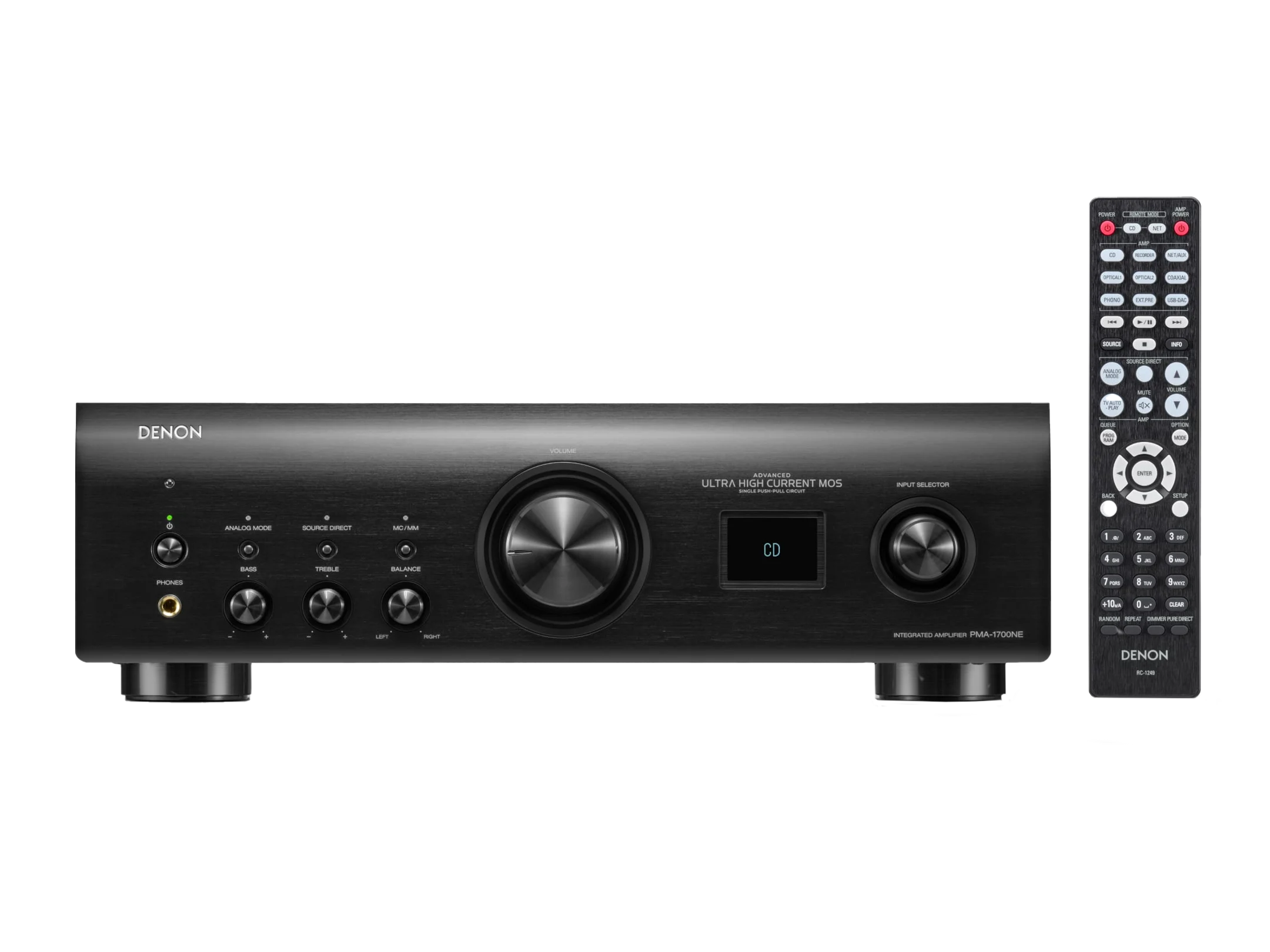

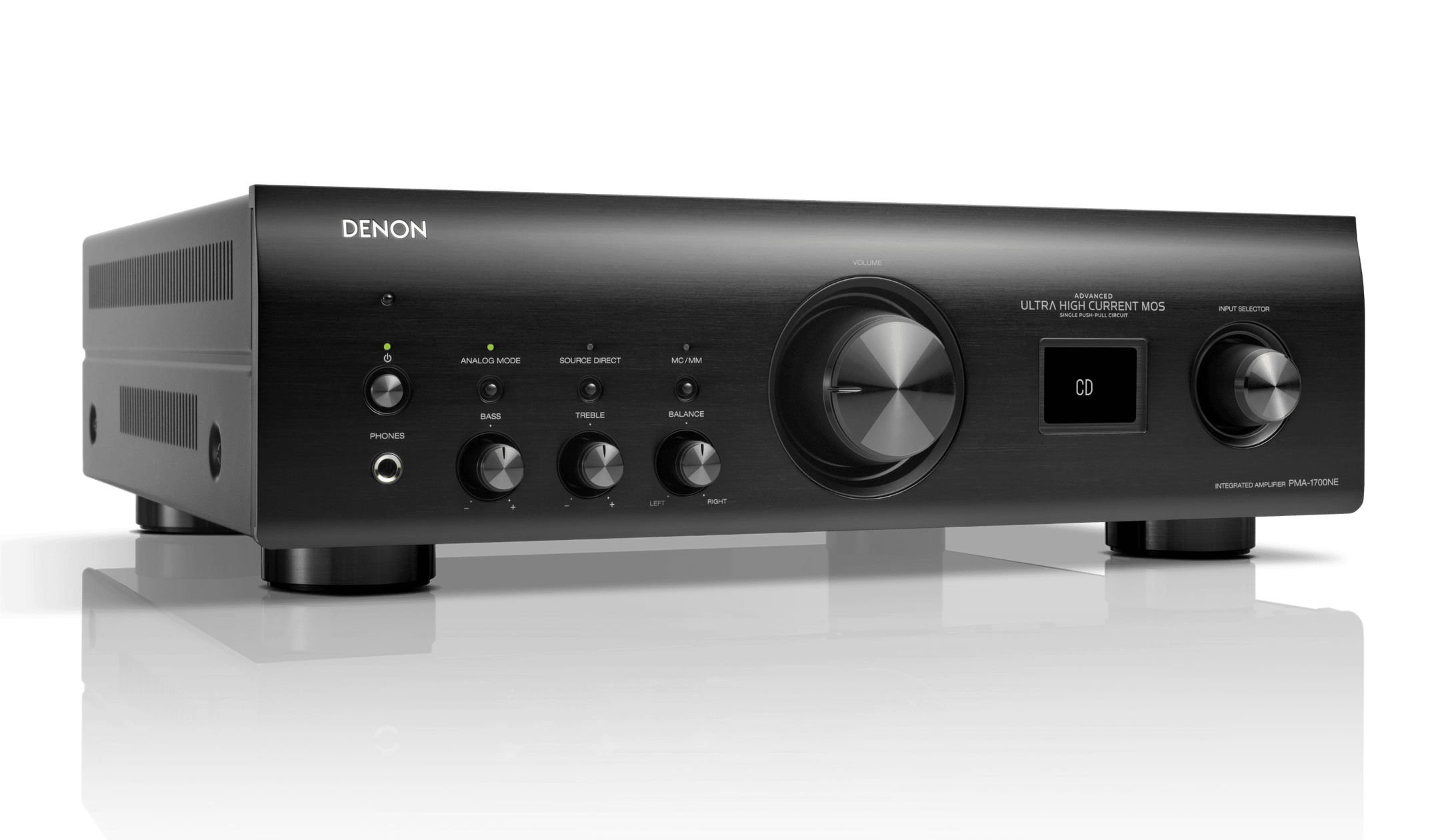

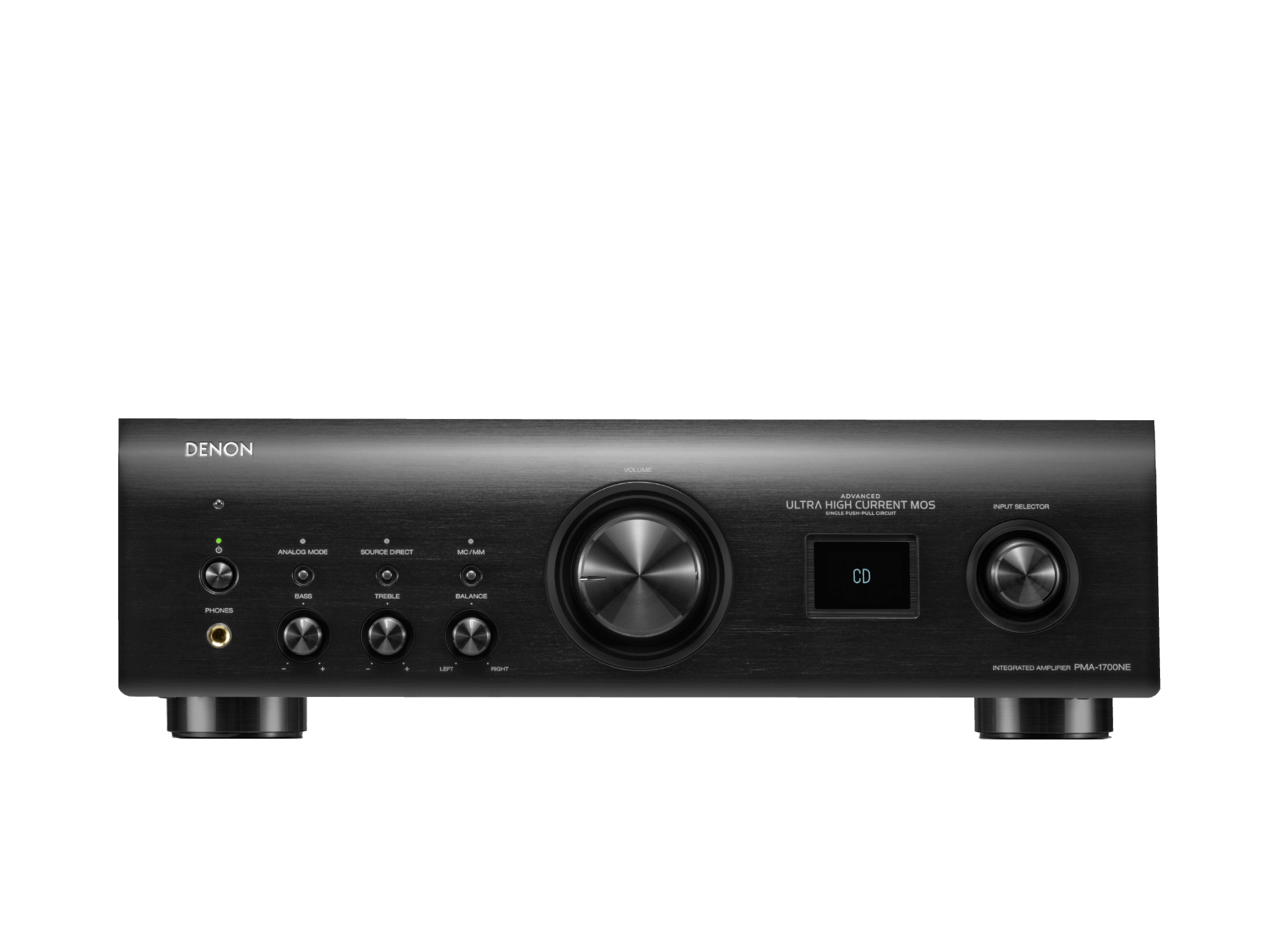

Denon PMA-1700NE Integrated Stereo Amplifier
The Denon PMA-1700NE is a premium 2-channel integrated stereo amplifier designed for high-performance Hi-Fi systems. Combining Denon’s high-current analog amplification with high-resolution digital processing, USB-DAC functionality and an MM/MC phono stage, it provides a versatile foundation for both traditional analog and modern digital music systems.

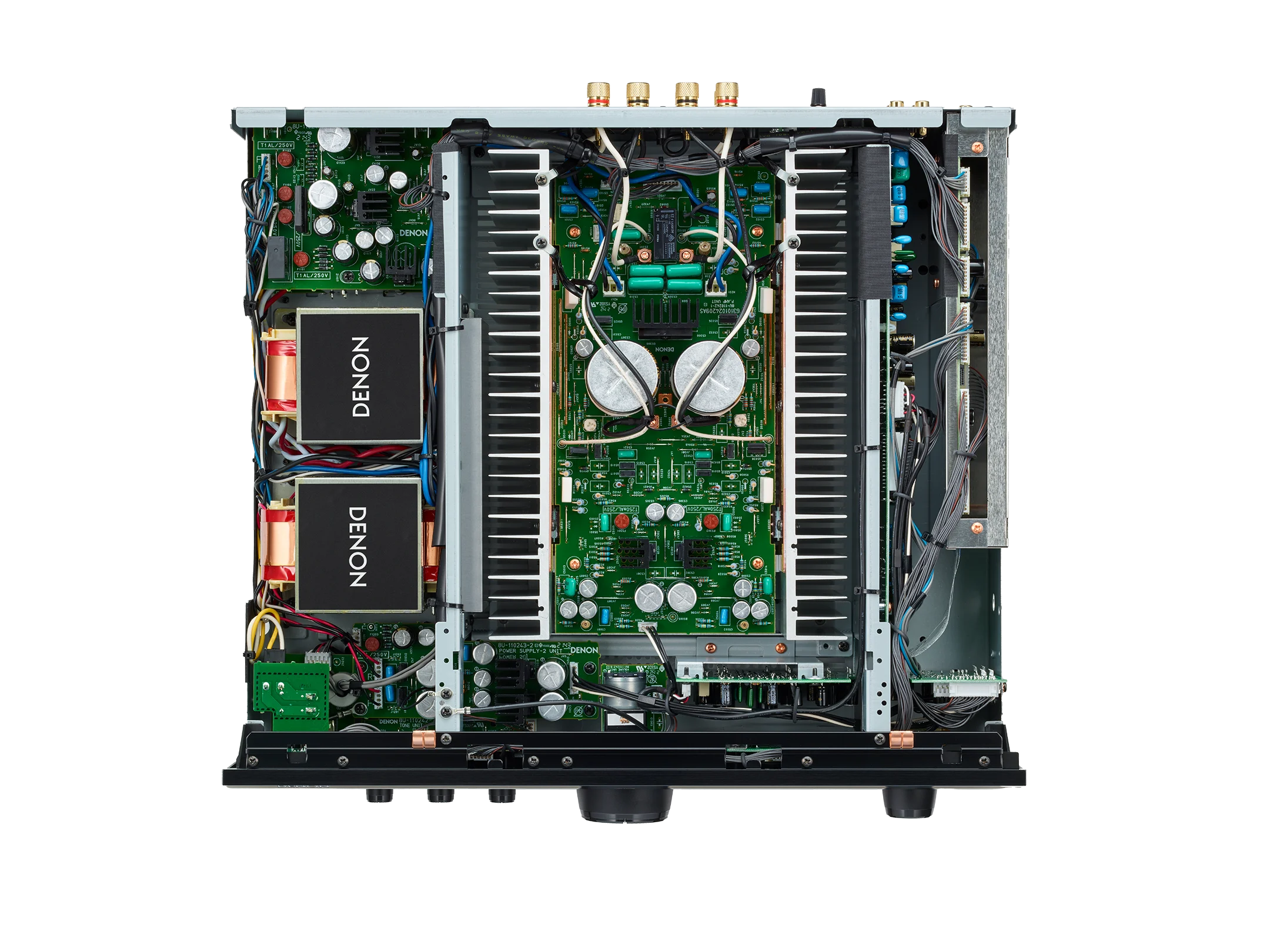

The power amplifier section uses Denon’s New UHC-MOS Single Push-Pull circuit together with a Variable Gain Preamplifier architecture. The PMA-1700NE delivers 70W + 70W into 8-ohm loads from 20Hz to 20kHz with 0.07% THD, while output rises to 140W + 140W into 4 ohms at 1kHz with 0.7% THD. Its wide 5Hz–100kHz frequency response is designed to accommodate high-resolution audio sources and a broad range of loudspeaker designs.
For digital playback, the amplifier incorporates a PCM1795 digital-to-analog converter together with Denon’s Advanced AL32 Processing Plus. Its asynchronous USB-B interface supports Linear PCM audio up to 384kHz/32-bit and DSD signals up to 11.2MHz. Full electrical isolation is employed on the USB-B interface to help prevent unwanted high-frequency noise from a connected computer entering the amplifier’s audio circuitry.
The PMA-1700NE also provides two optical digital inputs and one coaxial digital input, each supporting Linear PCM signals up to 192kHz/24-bit. Denon’s DAC Master Clock Design uses the DAC’s master clock as the reference for digital audio processing to help reduce timing errors during digital-to-analog conversion.
Vinyl listeners can connect a turntable directly through the integrated phono equalizer, which supports both Moving Magnet (MM) and Moving Coil (MC) cartridges. The MM input is specified at 2.5mV / 47k ohms, while the MC input is specified at 200µV / 100 ohms, making the amplifier suitable for a wide variety of turntable and cartridge combinations.
For analog listening, Source Direct bypasses the tone-control circuitry, while Analog Mode switches off sections of the digital circuitry when digital sources are not required. Bass, Treble and Balance adjustments remain available for systems where tonal correction is preferred.

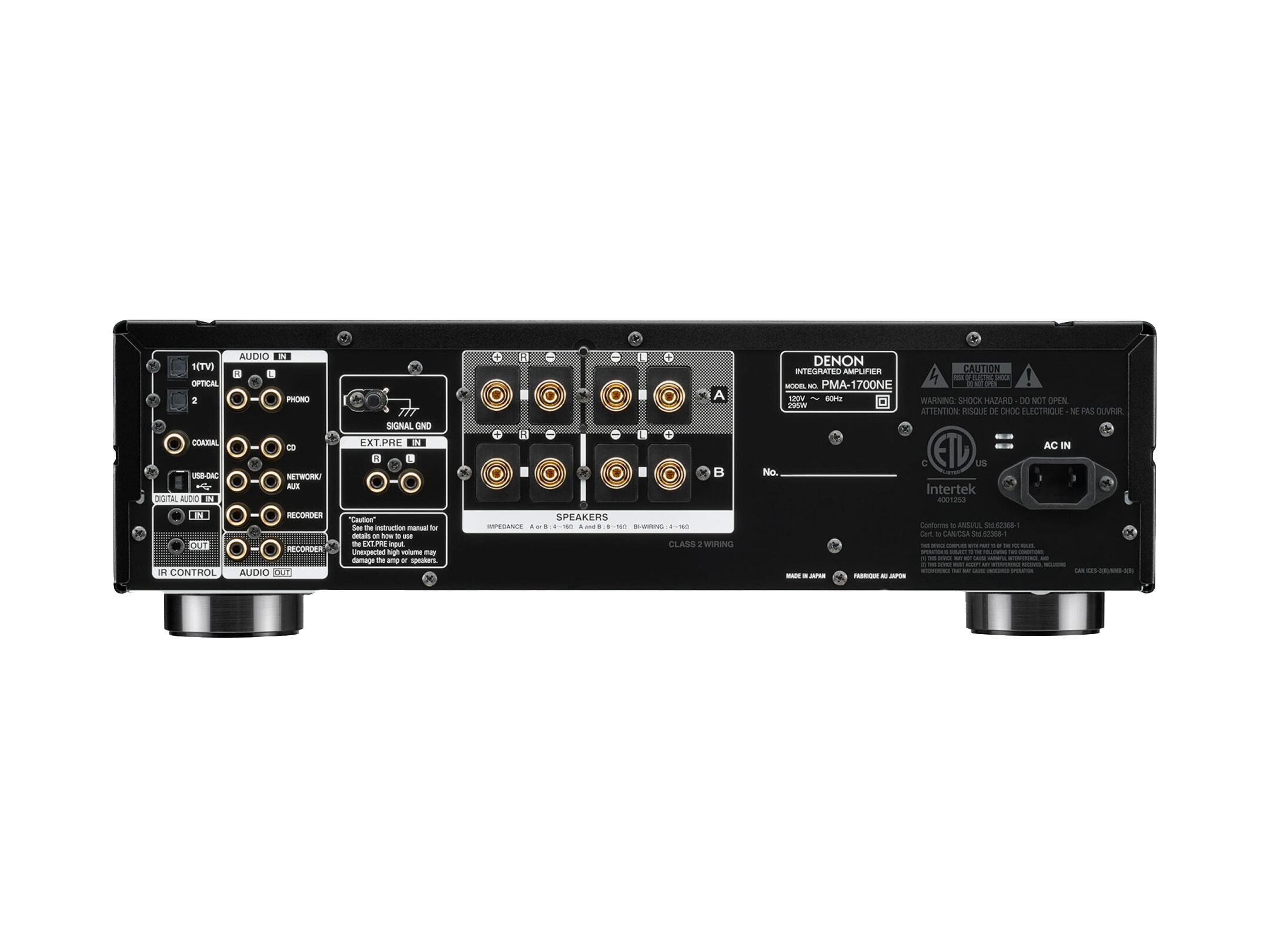

Two sets of gold-plated speaker terminals provide Speaker A/B operation and support compatible bi-wiring configurations. Additional connectivity includes four analog RCA inputs including phono, a recording output, EXT.PRE power-amplifier input, headphone output and remote-control bus connection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | PMA-1700NE |
| Product Type | 2-Channel Integrated Stereo Amplifier |
| Power Amplifier Circuit | New UHC-MOS Single Push-Pull |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Rated Output – 8 Ohms | 70W + 70W, 20Hz–20kHz, THD 0.07% |
| Rated Output – 4 Ohms | 140W + 140W, 1kHz, THD 0.7% |
| Total Harmonic Distortion | 0.01% at rated output −3dB, 8 ohms, 1kHz |
| Frequency Response | 5Hz–100kHz (0 to −3dB) |
| Speaker Impedance – A or B | 4–16 ohms |
| Speaker Impedance – A + B | 8–16 ohms |
| DAC | PCM1795 |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design | Yes |
| USB-DAC Mode | Asynchronous with full isolation |
| USB PCM Support | Up to 384kHz / 32-bit |
| USB DSD Support | Up to 11.2MHz |
| Optical / Coaxial Maximum Resolution | Up to 192kHz / 24-bit Linear PCM |
| USB-B Input | 1 × rear USB-DAC input |
| Optical Digital Inputs | 2 |
| Coaxial Digital Inputs | 1 |
| Analog Inputs | 4 RCA inputs including Phono |
| Record Output | 1 × RCA |
| Phono Stage | Moving Magnet (MM) / Moving Coil (MC) |
| MM Phono Sensitivity / Impedance | 2.5mV / 47k ohms |
| MC Phono Sensitivity / Impedance | 200µV / 100 ohms |
| RIAA Deviation | 20Hz–20kHz ±0.5dB |
| Maximum MM Phono Input | 130mV at 1kHz |
| Maximum MC Phono Input | 10mV at 1kHz |
| MM Phono Signal-to-Noise Ratio | 89dB |
| MC Phono Signal-to-Noise Ratio | 74dB |
| CD / Line Signal-to-Noise Ratio | 106–107dB depending on published regional specification |
| EXT.PRE Input | 0.84–0.85V / 47k ohms |
| Amplification Factor | 29dB |
| Bass Control | 100Hz ±8dB |
| Treble Control | 10kHz ±8dB |
| Midrange Control | No |
| Balance Control | Yes |
| Source Direct | Yes |
| Analog Mode | Yes |
| Speaker Outputs | 2 sets – Speaker A / B |
| Speaker Terminals | Gold-plated |
| Bi-Wiring Support | Yes |
| Headphone Output | 1; speaker output is disabled when headphones are connected |
| Wi-Fi | No |
| HEOS Built-In | No |
| Power Consumption | 295W |
| Standby Power Consumption | 0.2W with TV Auto Play disabled; 0.4W with TV Auto Play enabled |
| Dimensions | 434 × 135 × 410 mm (W × H × D) / approximately 17.1 × 5.3 × 16.1 in |
| Cabinet Dimensions | 434 × 135 × 374 mm (W × H × D) |
| Weight | 17.6kg / 38.8lb |
| Available Finishes | Black / Premium Silver |
| Listed Price | ₹2,69,900 |
Key Features
- New UHC-MOS Single Push-Pull Amplification: Denon’s Ultra High Current MOS design provides substantial current capability while maintaining a relatively simple single push-pull output-stage architecture.
- 140W per Channel into 4 Ohms: Provides 140W + 140W into 4-ohm loudspeakers at 1kHz, alongside a full-band rating of 70W + 70W into 8 ohms from 20Hz–20kHz.
- Advanced AL32 Processing Plus: Denon’s digital waveform processing technology operates with high-resolution sources up to 384kHz/32-bit to improve waveform reconstruction during digital playback.
- High-Resolution USB-DAC: The rear USB-B input supports PCM audio up to 384kHz/32-bit and DSD audio up to 11.2MHz.
- PCM1795 DAC: A dedicated high-resolution digital-to-analog conversion stage handles connected digital sources.
- USB Full Isolation: Electrical isolation of the USB-B circuit helps prevent unwanted electrical noise from a connected computer entering sensitive audio circuitry.
- MM/MC Phono Equalizer: The integrated phono stage supports both Moving Magnet and Moving Coil cartridges for direct turntable connection.
- Analog Mode: Allows digital circuitry to be switched off when playing analog sources, reducing unnecessary digital activity within the amplifier.
- Source Direct: Bypasses Bass, Treble and Balance processing when a shorter signal path is preferred.
- Flexible Digital Connectivity: Two optical inputs, one coaxial input and USB-B accommodate televisions, CD transports, computers and other digital audio components.
- Gold-Plated Speaker Terminals: Dual Speaker A/B terminal sets provide secure loudspeaker connectivity and support compatible bi-wiring installations.
- EXT.PRE Input: Allows the PMA-1700NE’s power amplifier section to be integrated with compatible external preamplifiers or AV systems.
Ideal For
- Premium Hi-Fi Stereo Systems
- Floorstanding and Bookshelf Loudspeakers
- Dedicated Two-Channel Listening Rooms
- Turntables with MM or MC Cartridges
- High-Resolution PC and Mac Audio Playback
- CD Players and Digital Audio Transports
- Network Audio Players
- TV Audio via Optical Digital Connection
- Bi-Wired Loudspeaker Systems
- Custom Premium Hi-Fi and AV Installations
