Description

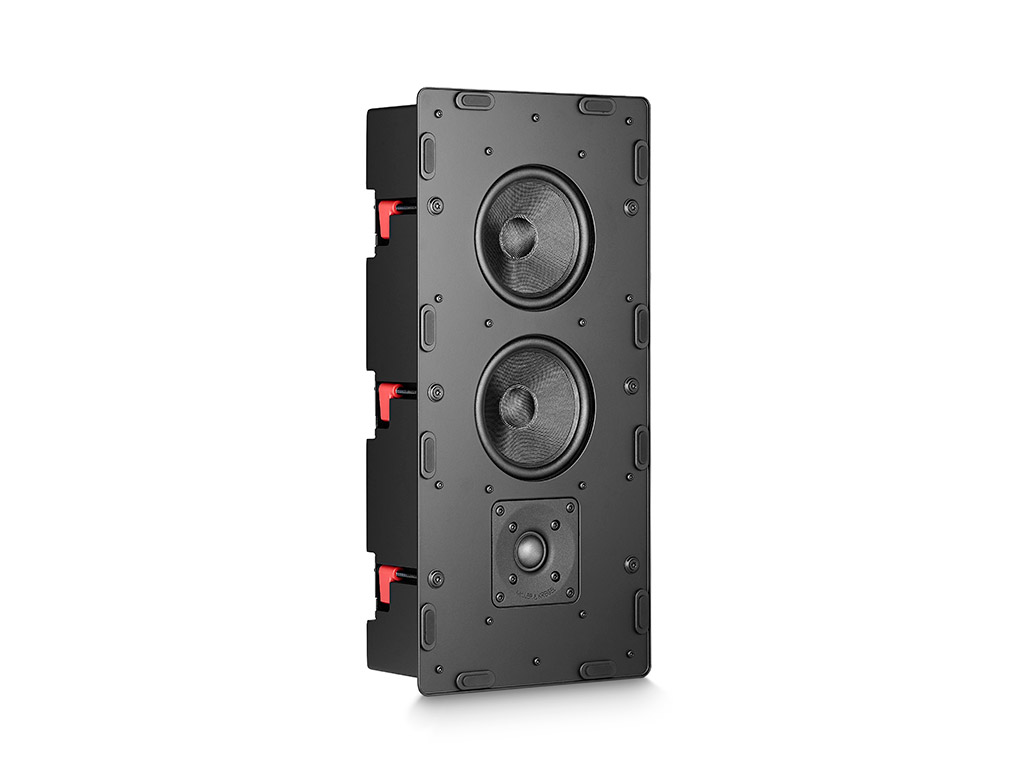

M&K Sound IW950 In-Wall Speaker
The M&K Sound IW950 is a premium architectural in-wall loudspeaker incorporating proprietary M&K Sound drive units and technologies derived from the classic 950 Series. Designed for high-performance home theatre and music systems, the IW950 delivers detailed, dynamic and accurate sound while maintaining a discreet, flush-mounted appearance.
The IW950 features two 5.25-inch polypropylene bass/midrange drivers that provide controlled and articulate low-frequency and midrange reproduction. The dual-driver configuration helps deliver a powerful and balanced presentation while maintaining the compact dimensions required for architectural installation.
High-frequency reproduction is handled by a 1-inch soft fabric dome tweeter. M&K Sound’s custom-designed tweeter technology is engineered for accurate and extended high-frequency reproduction, providing a smooth transition between the tweeter and bass/midrange drivers.
The IW950 delivers a frequency response of 80 Hz–20 kHz ±3 dB and has a sensitivity of 90 dB at 2.83 V/1 m. Its 4-ohm impedance and recommended amplifier power range of 25–400 watts make it suitable for integration with powerful AV receivers, power amplifiers and dedicated home theatre electronics.
The speaker incorporates a sealed backbox enclosure, which provides a controlled acoustic environment and reduces the influence of the wall cavity on the speaker’s performance. This allows more predictable results across different installation environments.
The IW950 uses a rigid steel front baffle designed to provide a stable mounting platform and minimise unwanted vibration and resonance. The hardened steel construction is particularly well suited to demanding custom installation applications.
Its frameless architectural design allows the speaker to blend discreetly into the wall. The low-profile metal grille can be painted to match the surrounding surface, making the IW950 suitable for luxury residential interiors where both acoustic performance and visual integration are important.
The IW950 can be used for a variety of home theatre applications, including left, centre and right channels, surround channels and immersive audio installations. M&K Sound states that its architectural in-wall range can be used for current immersive formats including Dolby Atmos, DTS:X and Auro.
Installation is simplified through the integrated mounting system, which uses self-locking clamps and front-accessible mounting screws. Push terminals and pre-fitted installation hardware further support a clean and efficient custom installation.
The M&K Sound IW950 combines the performance philosophy of M&K’s renowned 950 Series with the convenience of an architectural in-wall design, making it an excellent choice for premium home theatres, dedicated cinema rooms, high-end stereo systems and custom residential AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | M&K Sound / Miller & Kreisel |
| Model | IW950 |
| Product Type | In-Wall Architectural Speaker |
| Configuration | 2-Way |
| Bass/Midrange Drivers | 2 × 5.25″ Polypropylene |
| High-Frequency Driver | 1 × 1″ Soft Fabric Dome |
| Frequency Response | 80 Hz – 20 kHz ±3 dB |
| Sensitivity | 90 dB (2.83 V / 1 m) |
| Impedance | 4 Ω |
| Recommended Amplifier Power | 25 – 400 W |
| Grille Dimensions (H × W) | 496 × 240 mm / 19.52 × 9.44″ |
| Baffle Dimensions (H × W) | 489 × 234 mm / 19.25 × 9.21″ |
| Wall Cut-Out (H × W) | 467 × 212 mm / 18.38 × 8.34″ |
| Mounting Depth | 95 mm / 3.74″ |
| Weight | 8 kg / 17.7 lbs |
| Grille Finish | White Metal, Paintable |
Key Features
- 950 Series Technology: Incorporates proprietary M&K Sound technologies derived from the classic 950 Series.
- Dual 5.25-Inch Drivers: Provides powerful and controlled bass and midrange reproduction.
- 1-Inch Soft Fabric Dome Tweeter: Delivers smooth and detailed high-frequency performance.
- 90 dB Sensitivity: Provides efficient output with suitable amplification.
- 25–400W Amplifier Power: Suitable for powerful AV receivers and dedicated power amplifiers.

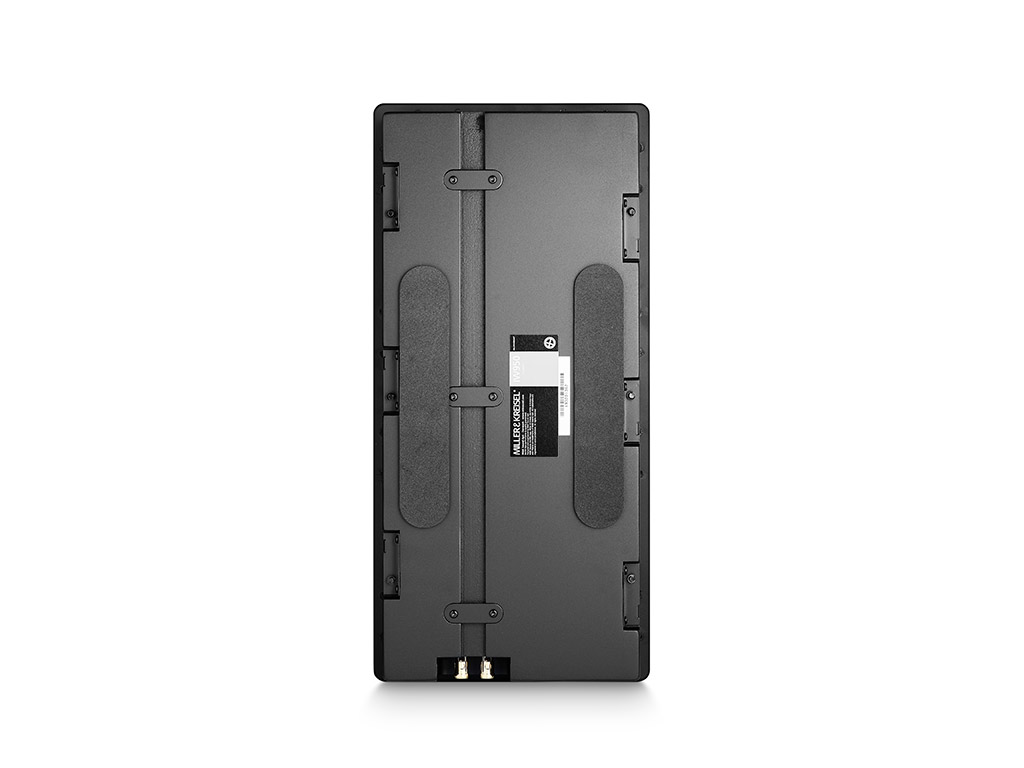

- Sealed Backbox: Provides a controlled acoustic environment and reduces the influence of the wall cavity.
- Rigid Steel Baffle: Helps minimise unwanted vibration and provides a stable driver platform.
- Frameless Architectural Design: Allows the speaker to blend discreetly into the wall.

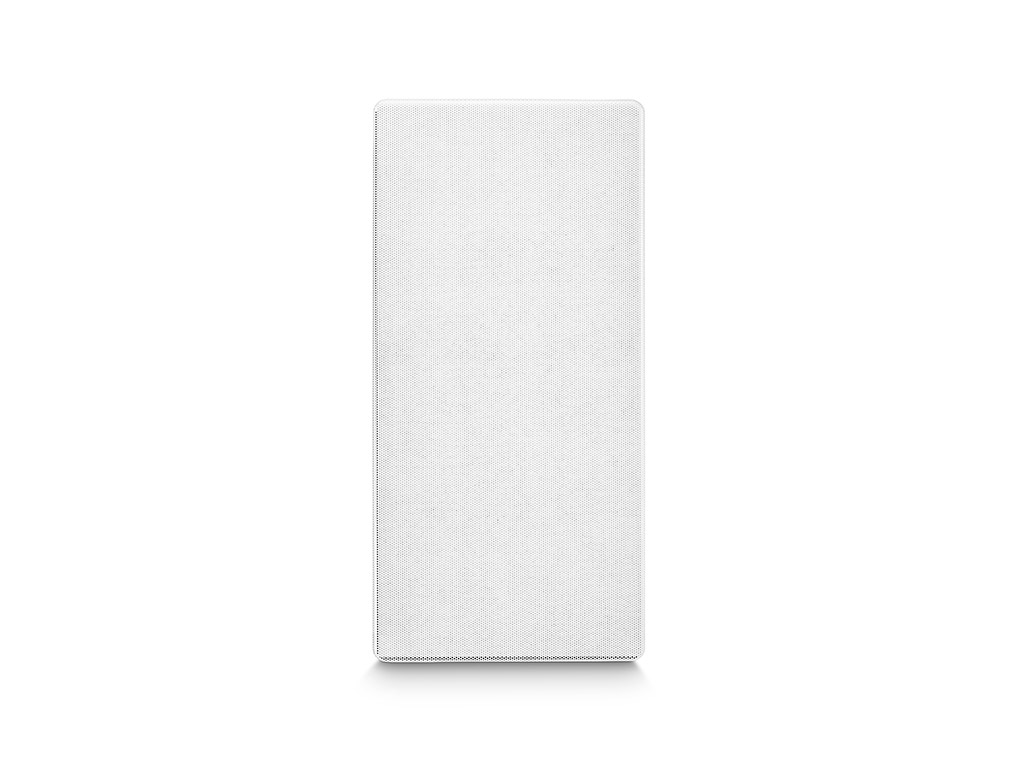

- Paintable Metal Grille: Can be customised to match the surrounding wall finish.
- Immersive Audio Compatible: Suitable for Dolby Atmos, DTS:X and Auro installations.
- Flexible Installation: Suitable for in-wall and selected in-ceiling applications.
Ideal For
- Premium Home Theatre Systems
- Dedicated Cinema Rooms
- High-End Stereo Systems
- In-Wall LCR Applications
- Surround Sound Systems
- Dolby Atmos Home Theatre
- DTS:X Immersive Audio
- Luxury Residential AV Installations
- Custom Home Theatre Projects
- Architectural Audio Systems
