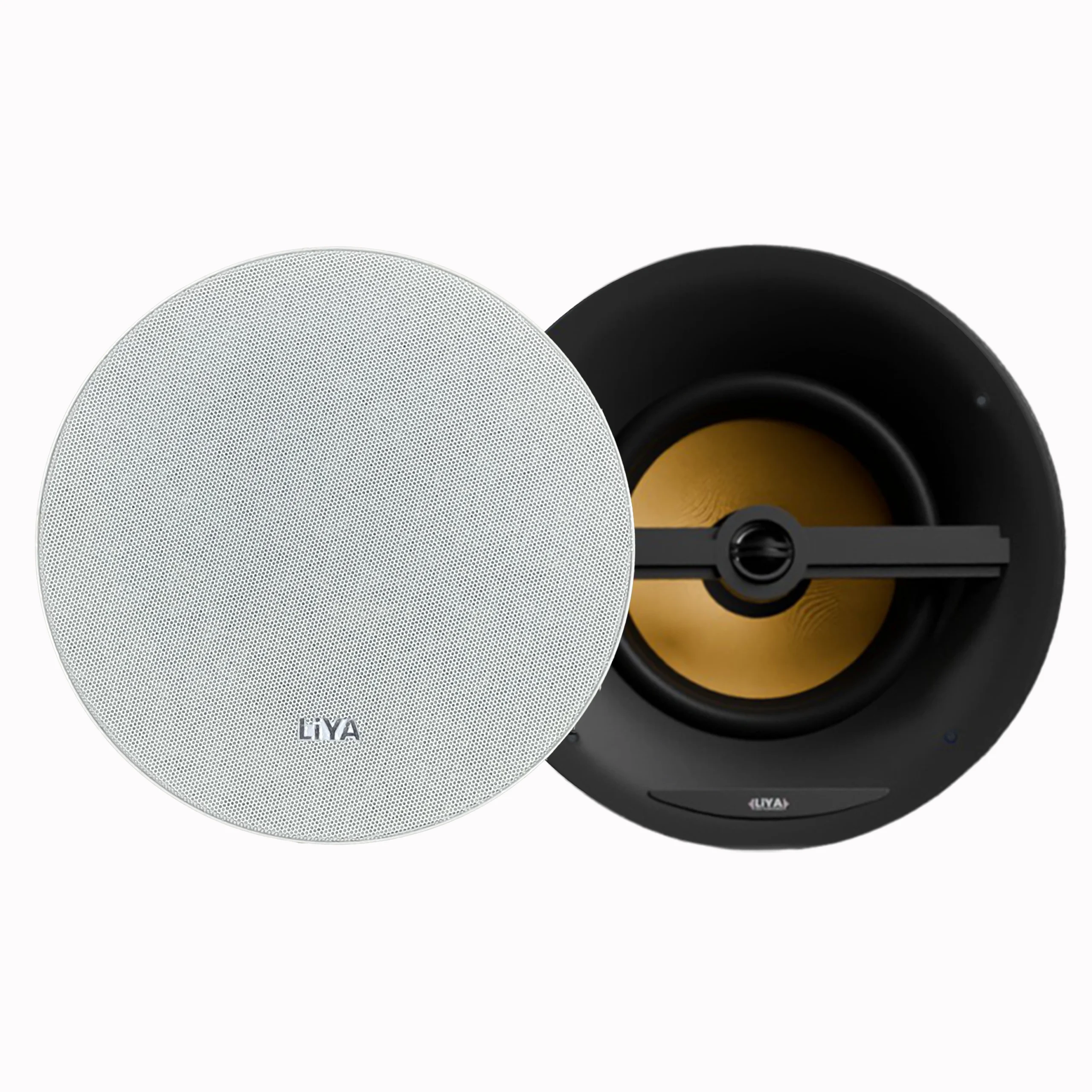

LiYA CS80 8″ In-Ceiling Speaker
The LiYA CS80 is a high-output passive in-ceiling speaker designed for larger rooms, premium home theatre systems and architectural Hi-Fi installations. Its two-way driver configuration combines a large 8-inch Kevlar cone woofer with a 1-inch silk-dome tweeter, providing stronger low-frequency extension and higher output capability than smaller conventional ceiling speakers.
The 8-inch Kevlar woofer is designed to move a greater volume of air while maintaining a rigid and lightweight diaphragm. This helps the CS80 deliver controlled mid-bass and deeper low-frequency reproduction, with a manufacturer-specified frequency response extending down to 52Hz.
A 1-inch silk-dome tweeter complements the Kevlar woofer with smooth high-frequency reproduction up to 20kHz. Together, the two drivers provide a broad frequency range suitable for music, movie soundtracks, surround effects and general distributed-audio applications.
The CS80 has a nominal impedance of 8 ohms and a sensitivity of 90dB at 1W/1m. LiYA specifies a power-handling range of 30 to 120 watts, allowing the speaker to be partnered with a wide variety of suitable AV receivers and stereo amplifiers.
For architectural installation, the speaker measures approximately 275 × 120mm and requires a 258mm ceiling cut-out. LiYA’s current specification sheet lists a 126mm mounting depth. A heavy-duty clamp mounting system provides secure installation into suitable ceiling structures.
A paintable bezel-free magnetic grille is included, allowing the CS80 to sit discreetly within the ceiling while maintaining a clean architectural appearance. Its larger 8-inch driver and higher power capability make it particularly suitable for large living spaces, dedicated home theatres and installations requiring greater output from an in-ceiling loudspeaker.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LiYA |
| Model | CS80 |
| Product Type | Passive Hi-Fi In-Ceiling Speaker |
| Sold As | Per Unit |
| Configuration | 2-Way |
| Woofer | 1 × 8″ Kevlar Cone Woofer |
| Tweeter | 1 × 1″ Silk Dome Tweeter |
| Frequency Response | 52Hz–20kHz |
| Power Handling | 30–120 Watts |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 90dB (1W/1m) |
| Dimensions | 275 × 120 mm |
| Mounting Depth | 126 mm |
| Cut-Out Diameter | 258 mm |
| Installation Type | Flush-Mount In-Ceiling |
| Mounting System | Heavy-Duty Integrated Clamp System |
| Grille | Paintable Magnetic Grille Included |
| Grille Design | Low-Profile / Bezel-Free |
| Application | Home Theatre, Hi-Fi, Multi-Room and Architectural Audio |
| Listed Price | ₹11,500 Per Unit |
Key Features
- 8″ Kevlar Cone Woofer: Large-format Kevlar driver provides greater air movement for deeper bass and higher output in larger rooms.
- 1″ Silk-Dome Tweeter: Provides smooth and detailed high-frequency reproduction for music, dialogue and movie soundtracks.
- 52Hz–20kHz Frequency Response: Extended low-frequency performance gives the CS80 greater full-range capability than many smaller ceiling speakers.
- 120W Maximum Power Handling: High-output capability makes the CS80 suitable for demanding home theatre and Hi-Fi installations.
- 90dB Sensitivity: Efficient acoustic output allows effective operation with a broad range of suitable AV receivers and amplifiers.
- 8-Ohm Nominal Impedance: Straightforward compatibility with many conventional residential stereo amplifiers and AV receivers.
- Paintable Magnetic Grille: Bezel-free grille sits flush against the ceiling and can be finished to match surrounding décor.
- 258mm Cut-Out: Designed for secure flush-mount installation in suitable ceiling structures.
- Heavy-Duty Clamp Mounting: Provides secure installation and helps minimise unwanted vibration.
Ideal For
- Dedicated Home Theatre Systems
- Dolby Atmos Overhead Channels
- Large Living Rooms
- Hi-Fi Music Systems
- Multi-Room Audio
- Large Open-Plan Spaces
- Custom Residential AV Installations
- Premium Architectural Audio Systems
