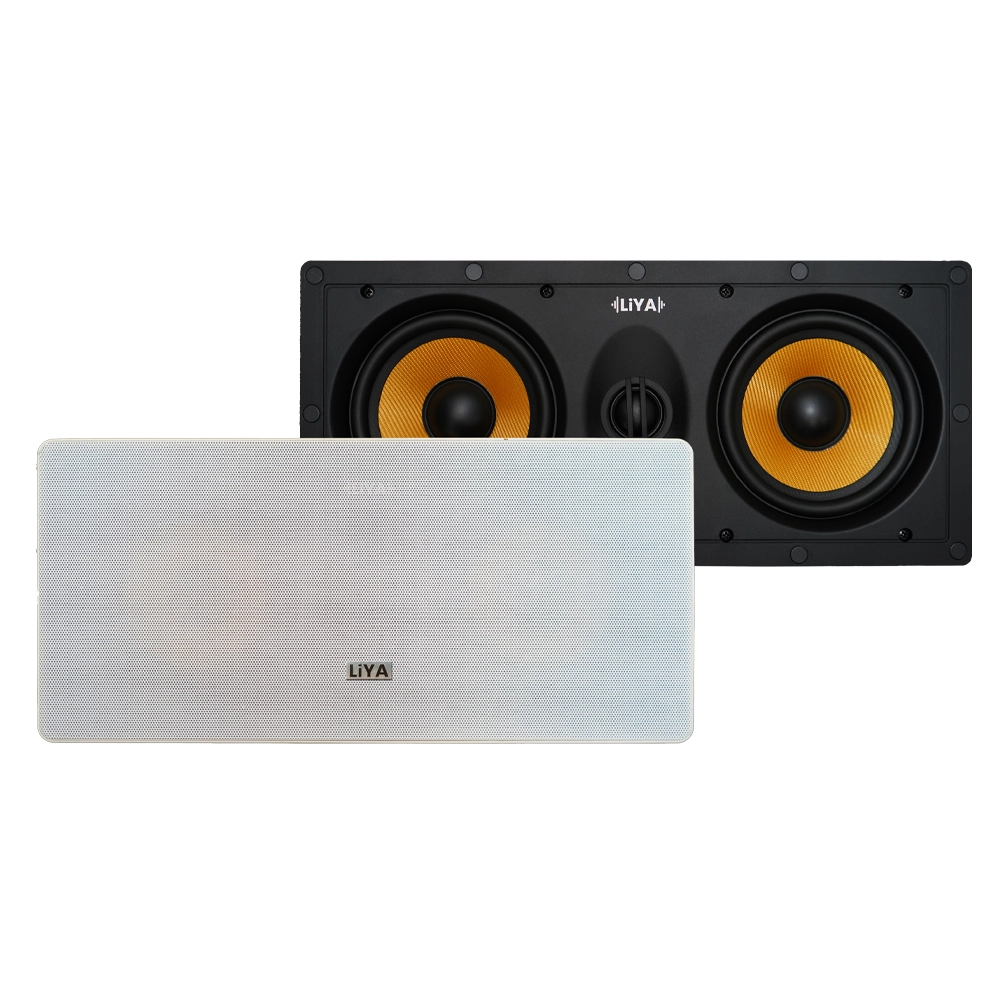

LiYA LCR5 D’Appolito In-Wall LCR Speaker (Per Unit) – Dual 5.25″ Kevlar Woofers with Rotating Inverted-Dome Tweeter

The LiYA LCR5 is a high-performance passive in-wall loudspeaker engineered specifically for premium home cinema and architectural audio installations. Its D’Appolito two-way configuration places a centrally positioned tweeter between two 5.25-inch Kevlar woofers, creating a symmetrical acoustic radiation pattern and making the speaker equally suitable for horizontal centre-channel or vertical left/right installation.

The LCR5 uses dual 5.25-inch Kevlar cone woofers designed to provide controlled mid-bass, strong vocal reproduction and low distortion. Positioned between the woofers is a 1-inch inverted-dome tweeter that can rotate through 360 degrees and incorporates approximately 20 degrees of inclination, allowing high-frequency energy to be aimed toward the primary listening position.

LiYA specifies a frequency response of 60Hz to 20kHz within ±3dB, nominal impedance of 8 ohms and sensitivity of 90.5dB at 2.83V/1m. Recommended amplifier power is 30 to 100 watts, allowing the speaker to work with a broad selection of compatible AV receivers and power amplifiers.

Integrated acoustic adjustment controls provide additional installation flexibility. Tweeter output can be adjusted between -3dB, 0dB and +3dB, while the midrange can be adjusted between -2dB, 0dB and +2dB. These controls allow an installer to compensate for room acoustics, speaker positioning and surrounding surface characteristics.

The speaker measures approximately 440 × 173 × 86mm and requires a 415 × 147mm wall cut-out. LiYA’s current specification sheet lists approximately 90mm mounting depth, while the product webpage describes the cabinet depth as 86mm. Final wall-cavity clearance should therefore be physically confirmed before cutting.

Six heavy-duty mounting brackets secure the LCR5 into the wall structure, while the supplied paintable magnetic grille provides a clean, bezel-free appearance. Once installed, the speaker can blend discreetly into the room while delivering a consistent front soundstage for dedicated home cinema systems.

• D’Appolito Driver Architecture: Dual woofers positioned around the tweeter provide symmetrical dispersion and make the speaker suitable for both horizontal and vertical orientation.
• Dual 5.25″ Kevlar Woofers: Rigid Kevlar cone construction is designed to provide controlled bass, detailed midrange and strong dialogue reproduction.
• 1″ Inverted-Dome Tweeter: Provides detailed high-frequency reproduction and wide sound dispersion.
• 360° Rotating Tweeter: The tweeter can be aimed toward the listening area and includes approximately 20 degrees of inclination for improved directional control.
• Adjustable Tweeter Output: -3dB, 0dB and +3dB settings allow the treble balance to be tailored to room acoustics.
• Adjustable Midrange: -2dB, 0dB and +2dB settings provide additional control over vocal and mid-frequency balance.
• 60Hz–20kHz Frequency Response: Broad operating range makes the LCR5 suitable for movie dialogue, music and cinematic effects.
• 90.5dB Sensitivity: Efficient performance allows strong output with compatible AV receivers and external amplifiers.
• 30–100W Recommended Amplification: Provides flexible system matching without confusing recommended amplifier power with continuous speaker output.
• Flexible LCR Placement: Can be installed vertically for left/right channels or horizontally beneath or above a display as a centre speaker.
• Six-Point Mounting System: Heavy-duty brackets provide secure architectural installation.
• Paintable Magnetic Grille: Allows the speaker to blend discreetly into the surrounding wall finish.

• Dedicated Home Theatre Front LCR
• Centre Channel Installation
• In-Wall Left and Right Channels
• Acoustically Transparent Screen Systems
• Media Rooms
• Premium Residential Cinema
• Architectural Hi-Fi Installations
• Custom AV Projects
