DALI PHANTOM H-80 In-Wall Speaker (Per Pair) – Premium 2-Way 8-Inch Full-Range Architectural Speaker

The DALI PHANTOM H-80 is a premium full-range architectural loudspeaker designed primarily for in-wall installation, while also supporting in-ceiling applications. Supplied as a pair, it is engineered to deliver large, dynamic and well-defined sound while maintaining a discreet architectural appearance.

The PHANTOM H-80 combines a powerful 8-inch wood-fibre cone woofer with a lightweight 28 mm soft-dome tweeter. The woofer uses DALI’s signature paper-pulp and wood-fibre cone technology to provide high-resolution midrange and precise, coherent bass, while the soft-dome tweeter delivers detailed high frequencies with wide dispersion and low coloration.

With a frequency response of 46–25,000 Hz (±3 dB), 90 dB sensitivity, 6 Ω nominal impedance and a maximum SPL of 109 dB, the PHANTOM H-80 is designed to provide powerful full-range performance in larger rooms and home cinemas. DALI recommends amplification between 30 and 200 watts.

The speaker features a solid MDF front baffle that securely supports the drivers and contributes to low-resonance performance. Its flush-mounted design, thin magnetic grille and wide-dispersion characteristics allow it to integrate discreetly into walls or ceilings while providing consistent sound across a broad listening area.

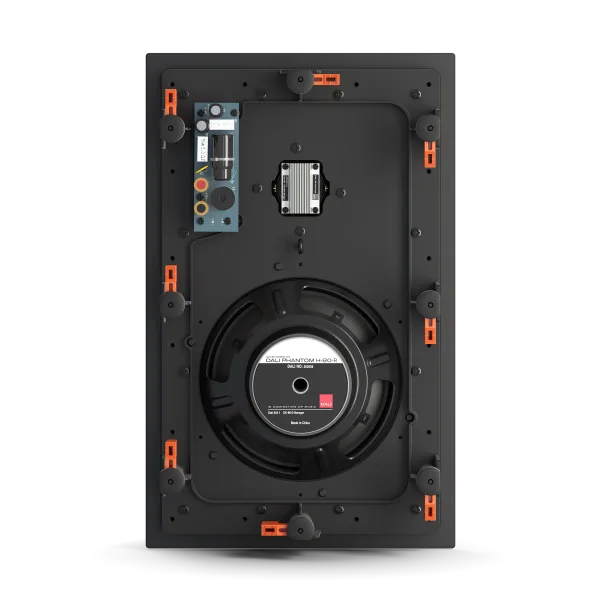

Installation is simplified through DALI’s dogleg mounting system, which allows the mounting brackets to be secured quickly by tightening the installation screws. The crossover also incorporates an integrated protection function to help safeguard the driver components during prolonged high-volume operation.

• 8-Inch Wood Fibre Woofer: The large woofer delivers powerful bass, high-resolution midrange and coherent full-range reproduction.
• 28 mm Soft-Dome Tweeter: The lightweight woven-fabric dome is designed for accurate and detailed high-frequency reproduction with wide dispersion.
• True Full-Range Performance: The PHANTOM H-80 is designed to deliver substantial low-frequency performance without requiring a supplemental subwoofer for many applications.
• Wide Dispersion: DALI’s wide-dispersion design provides a larger listening sweet spot and consistent sound for listeners positioned away from the central axis.
• Low-Resonance MDF Baffle: The solid front baffle provides a stable mounting platform for the drivers and helps reduce unwanted vibration and coloration.
• Audiophile-Grade Crossover: The crossover uses selected components and includes a resettable protection function designed to protect the drivers during extended high-volume playback.
• Flush Architectural Installation: Designed to sit discreetly within walls or ceilings, with a slim magnetic grille that integrates into modern interiors.
• Easy Installation: DALI’s dogleg mounting system allows the speaker to be securely fastened quickly during installation.
• High Output Capability: With 109 dB maximum SPL and recommended amplifier power of 30–200 W, the speaker is suitable for larger rooms and demanding home cinema applications.
• Flexible Placement: Primarily designed for in-wall installation, but can also be used for in-ceiling applications.

• Premium Home Theatre Systems
• Dedicated Home Cinema Rooms
• In-Wall Stereo Systems
• In-Ceiling Audio Applications
• Multi-Room Audio
• Large Living Rooms
• Custom Residential AV Installations
• Architectural Audio Systems
