Description

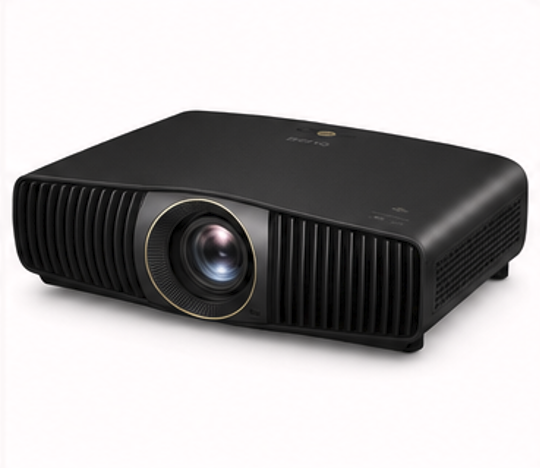

BenQ W5800 4K UHD Laser Home Cinema Projector
The BenQ W5800 is a flagship 4K UHD laser home cinema projector engineered for dedicated theatre rooms and premium custom AV installations. Combining a high-output laser light source, true 4K UHD presentation, complete DCI-P3 cinema colour coverage and BenQ HDR-PRO processing, it is designed for enthusiasts seeking accurate cinematic colour, sophisticated HDR reproduction and extensive professional installation flexibility.
The DLP projection system delivers a 3840 × 2160 4K UHD image with approximately 8.3 million displayed pixels. Its laser-array illumination system produces 2600 ANSI lumens and works with light-source dimming to achieve a specified 3,000,000:1 FOFO contrast ratio, supporting detailed highlight reproduction, deep dark scenes and strong overall image depth.
BenQ CinematicColor technology provides 100% coverage of the DCI-P3 digital cinema colour gamut as well as 100% Rec.709. Individual factory calibration is provided to support accurate out-of-box colour reproduction, while ISFccc Day and Night modes allow professional calibration for different room-lighting conditions.
HDR-PRO processing uses advanced tone mapping together with Global and Local Contrast Enhancement and Dynamic Black technologies. The Local Contrast Enhancer analyses more than 1,000 image regions to optimise gamma and contrast in different portions of the frame, helping retain both bright-highlight and dark-shadow detail.
The W5800 supports HDR10, HDR10+ and HLG. HDR10+ uses dynamic metadata to optimise compatible HDR content on a frame-by-frame basis, while Filmmaker Mode is available for viewers who prefer cinematic reproduction that preserves the original creative characteristics of film content.
Installation flexibility is one of the W5800’s strongest features. Its long-throw optical system provides a 1.52–2.45 throw ratio together with a 1.6x motorized optical zoom. Motorized vertical lens shift provides ±50% adjustment, while motorized horizontal lens shift provides ±21%, making the projector suitable for large dedicated cinema rooms and custom ceiling-mounted installations.
For additional geometry correction, 2D keystone adjustment provides up to ±35 degrees vertically and horizontally. The combination of motorized lens shift, motorized zoom and electronic image correction significantly simplifies precise alignment with large cinema screens.
Connectivity includes two HDMI inputs, with BenQ identifying the connections as HDMI 2.0b with HDCP 2.2 support. HDMI eARC provides up to 7.1-channel audio return and can pass compatible Dolby Atmos audio to an external AV receiver, processor or soundbar. The W5800 does not include built-in speakers and is intended to be paired with a dedicated home theatre audio system.
Two USB Type-A connections provide media-reader and power functions. Additional professional connectivity includes optical S/PDIF digital audio output, Ethernet LAN, RS-232 system control and a dedicated VESA 3D Sync output.
The solid-state laser source eliminates conventional projector lamp replacement. BenQ’s current detailed specification rates the light source for approximately 20,000 hours in Normal Mode and up to 25,000 hours in Eco Mode.
With its wide-gamut colour reproduction, HDR-PRO processing, motorized long-throw optical system and comprehensive integration features, the W5800 is particularly well suited to premium dedicated home cinemas using large projection screens, external surround-sound systems and professionally calibrated AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BenQ |
| Model | W5800 |
| Product Type | 4K UHD Laser Dedicated Home Cinema Projector |
| Projection System | DLP |
| Resolution | 3840 × 2160 4K UHD |
| Native Aspect Ratio | 16:9 |
| Brightness | 2600 ANSI lumens |
| Contrast Ratio | 3,000,000:1 FOFO with Light Source Dimming |
| Display Colour | 30-bit / approximately 1.07 billion colours |
| DCI-P3 Coverage | 100% |
| Rec.709 Coverage | 100% |
| Colour Technology | BenQ CinematicColor |
| Factory Calibration | Individual factory calibration report provided |
| ISF Certification | ISFccc with ISF Day / Night modes |
| Light Source | Laser Array |
| Light Source Life – Normal | Up to 20,000 hours |
| Light Source Life – Eco | Up to 25,000 hours |
| Throw Ratio | 1.52–2.45 Long Throw |
| Optical Zoom | 1.6x |
| Zoom Control | Motorized |
| Lens | F/# 2.1–3.0; f = 16.0–25.7 mm |
| Projection Offset | 0% |
| Vertical Lens Shift | ±50% Motorized |
| Horizontal Lens Shift | ±21% Motorized |
| Keystone Type | 2D Keystone |
| Vertical Keystone | ±35 degrees |
| Horizontal Keystone | ±35 degrees |
| HDR Technology | BenQ HDR-PRO |
| HDR Formats | HDR10 / HDR10+ / HLG |
| HDR Tone Mapping | HDR-PRO Two-Step Enhanced Tone Mapping |
| Local Contrast Enhancer | Yes – analyses more than 1,000 image zones |
| Global Contrast Enhancer | Yes |
| Dynamic Black | Yes |
| Filmmaker Mode | Yes |
| Picture Modes | 3D / Bright / Bright Cinema / Cinema / Filmmaker Mode / Filmmaker Mode HDR / HDR10 / HDR10+ / HLG / ISF Day / ISF Night / User |
| Full 3D Support | Yes |
| Input Lag – 4K/60Hz | 17.9ms |
| Input Lag – 1080p/60Hz | 17.9ms |
| Input Lag – 1080p/120Hz | 13ms |
| Resolution Support | VGA 640 × 480 up to 4K UHD 3840 × 2160 |
| HDMI Inputs | 2 × HDMI 2.0b / HDCP 2.2 |
| HDMI eARC | Yes – HDMI 1 |
| HDMI Audio Return | Up to 7.1-channel |
| Dolby Atmos Pass-Through | Yes via compatible eARC equipment |
| USB Type-A | 2 × USB 2.0 with media-reader and power functions |
| USB Type-B | 1 × Service Port |
| S/PDIF Digital Audio | Yes – PCM / Multi-Channel / RAW |
| LAN | 1 × RJ45 10/100 Mbps |
| RS-232 | 1 × DB-9 |
| 3D Sync Output | 1 × VESA |
| Built-in Speaker | No |
| Power Supply | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 450W |
| Normal Power Consumption | Approximately 380W |
| Eco Power Consumption | Approximately 240W |
| Standby Power Consumption | Less than 0.5W |
| Network Standby Consumption | Less than 2W |
| Acoustic Noise – Normal | 30dBA |
| Acoustic Noise – Eco | 27dBA |
| Operating Temperature | 0–40°C |
| Dimensions | 525.2 × 145.7 × 392.2 mm (W × H × D) |
| Dimensions – Inches | 20.7 × 5.7 × 15.4 in |
| Net Weight | 10.5kg / 23.1lb |
| Projector Warranty | 3 Years Onsite in India |
| Laser Light Source Warranty | Supplied dealer information: 3 Years or 15,000 hours; confirm against invoice / current BenQ India warranty terms before publishing |
Key Features
- True 4K UHD Projection: Displays approximately 8.3 million pixels for highly detailed movie reproduction on large home cinema screens.
- 2600 ANSI-Lumen Laser Array: High-performance solid-state illumination provides substantial brightness while eliminating conventional projector lamp replacement.
- 100% DCI-P3 CinematicColor: Full digital cinema colour-gamut coverage is designed to reproduce the broader colour palette used in modern theatrical content.
- 100% Rec.709: Provides complete HDTV colour-space coverage for accurate SDR movie and television reproduction.
- Factory Colour Calibration: Individual calibration helps provide precise out-of-box colour and grayscale reproduction for demanding cinema installations.
- 3,000,000:1 Dynamic Contrast: Laser light-source dimming enhances dark-scene depth and overall perceived image contrast.
- BenQ HDR-PRO: Two-step enhanced tone mapping balances bright highlights and dark details in compatible HDR content.
- Local Contrast Enhancer: Analyses more than 1,000 separate picture regions to optimise gamma and contrast locally across the frame.
- Dynamic Black: Dynamically varies laser light output according to image content for improved perceived black levels and contrast.
- HDR10+ Support: Dynamic metadata optimises compatible HDR content frame by frame for improved tonal reproduction.
- Filmmaker Mode: Preserves cinematic aspect ratio, colour and motion characteristics for movie reproduction closer to the creator’s intent.
- 1.6x Motorized Optical Zoom: Provides substantial screen-size and mounting-distance flexibility without relying on digital scaling.
- Motorized 2D Lens Shift: ±50% vertical and ±21% horizontal optical shift allows precise screen alignment in custom home theatre installations.
- 1.52–2.45 Long Throw Lens: Designed for larger dedicated cinema rooms where the projector can be positioned farther from the screen.
- 2D Keystone Correction: Vertical and horizontal geometry correction of up to ±35 degrees provides additional setup flexibility.
- Dual HDMI with eARC: Supports high-resolution 4K sources while eARC can deliver up to 7.1-channel and compatible Dolby Atmos audio to an external sound system.
- Dual USB Media Readers: Two USB Type-A connections provide convenient media playback and powered-device connectivity.
- Professional System Integration: LAN, RS-232 and 3D Sync connectivity make the W5800 suitable for custom-installed premium home theatres.
- Low-Noise Cooling: Acoustic noise is rated at approximately 30dBA in Normal Mode and 27dBA in Eco Mode for quieter movie playback.
Ideal For
- Dedicated 4K Home Cinema Rooms
- Premium Custom Home Theatre Installations
- Large 120–200+ Inch Projection Screens
- Long-Throw Projector Installations
- 4K Blu-ray Movie Collections
- HDR10, HDR10+ and HLG Content
- Film Enthusiasts Requiring 100% DCI-P3
- Professionally Calibrated Cinema Rooms
- ISF Day and Night Calibrated Systems
- Dolby Atmos and 7.1-Channel AV Receiver Systems
- Ceiling-Mounted Dedicated Cinema Installations
