Bowers & Wilkins Panorama 3 Dolby Atmos Soundbar
The Bowers & Wilkins Panorama 3 is a premium wireless Dolby Atmos soundbar designed to deliver an immersive home theatre experience from a single elegant component. Its discrete 3.1.2-channel architecture combines dedicated left, centre and right channels with upward-firing Atmos drivers to create a more expansive and immersive soundstage.
Panorama 3 uses a sophisticated multi-driver array comprising three 19 mm titanium-dome tweeters, six 50 mm woven glass-fibre cone bass/midrange drivers, two dedicated 50 mm Atmos drive units and two 100 mm low-profile bass units. The integrated driver arrangement is designed to deliver clear dialogue, detailed high frequencies, spacious surround effects and powerful low-frequency reproduction without requiring a separate subwoofer.
With 400 W of total amplifier power and a specified frequency response of 43 Hz–48 kHz, Panorama 3 is engineered for both movie soundtracks and music playback. Its Dolby Atmos 3.1.2 processing uses the dedicated Atmos drive units to reproduce height information from compatible content.

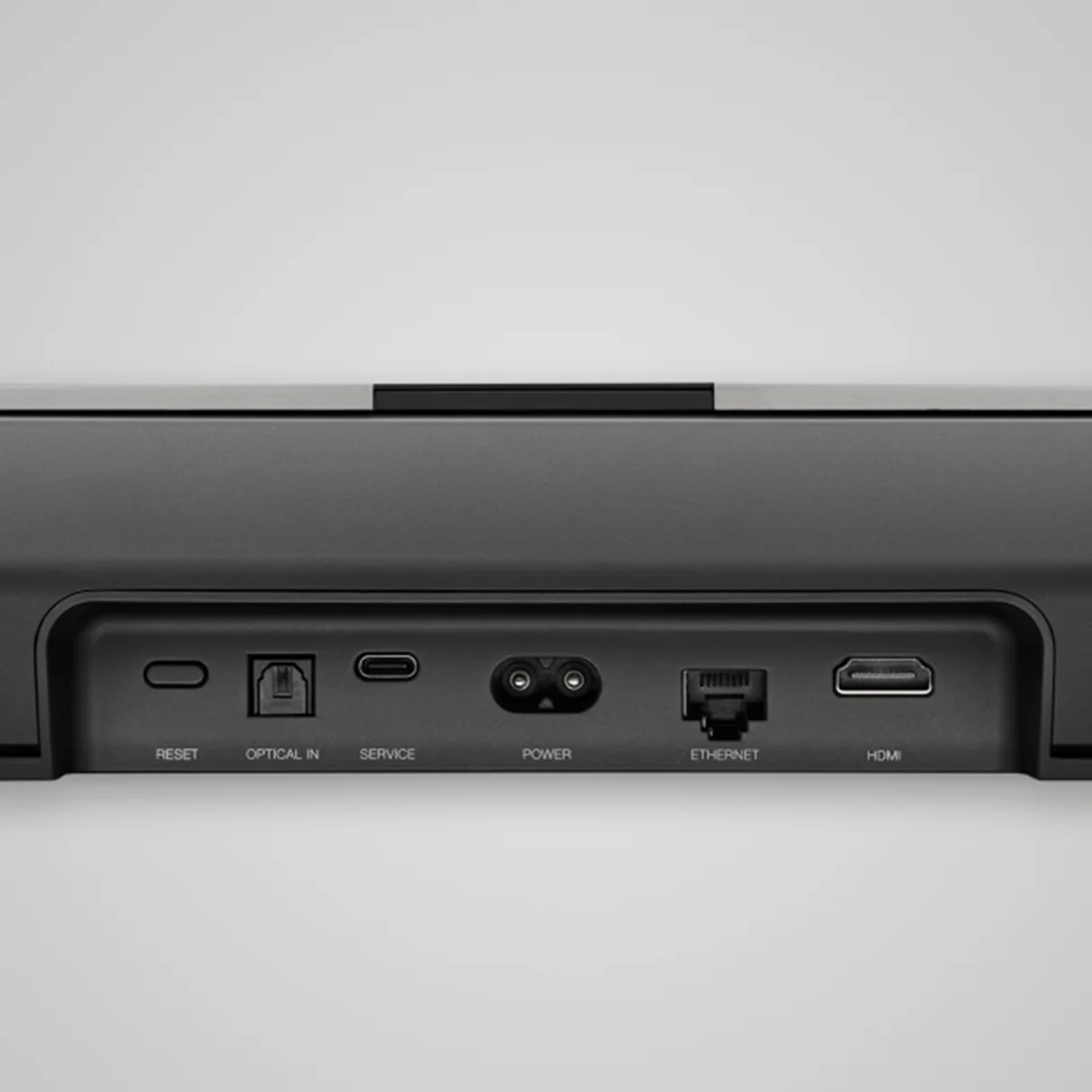

For TV and home theatre connectivity, Panorama 3 features HDMI eARC and optical digital input, while an Ethernet connection provides wired network connectivity. Wireless features include Bluetooth 5 with aptX Adaptive, AAC and SBC, as well as Apple AirPlay 2 and Spotify Connect.
The slim 65 mm-high enclosure is designed to sit beneath a television without dominating the installation. A wall bracket is included, providing additional installation flexibility for compatible wall-mounted TV setups.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bowers & Wilkins |
| Model | Panorama 3 |
| Product Type | Wireless Dolby Atmos Soundbar |
| Channel Configuration | 3.1.2 |
| Frequency Response | 43 Hz–48 kHz |
| Amplifier Power Output | 400 W |
| Tweeters | 3 × 19 mm (0.75 in) titanium-dome tweeters |
| Bass/Midrange Drivers | 6 × 50 mm (2 in) woven glass-fibre cone drivers |
| Atmos Drivers | 2 × 50 mm (2 in) woven glass-fibre cone Atmos drive units |
| Bass Drivers | 2 × 100 mm (4 in) low-profile bass units |
| Audio Formats | Dolby Atmos, Dolby TrueHD, Dolby Digital+, LPCM |
| Dolby Atmos Configuration | Discrete 3.1.2-channel Dolby Atmos |
| HDMI | 1 × HDMI eARC |
| Digital Audio Input | 1 × Toslink optical digital input |
| Network | 1 × RJ45 Ethernet |
| USB | 1 × USB-C, service connection only |
| Bluetooth | Bluetooth 5, Class 2 |
| Bluetooth Codecs | aptX Adaptive, AAC, SBC |
| Wireless Streaming | Apple AirPlay 2, Spotify Connect |
| App Support | Bowers & Wilkins Music App |
| Voice Assistant | Amazon Alexa enabled |
| Input Voltage | 100–240 V, 50/60 Hz |
| Standby Power Consumption | Below 2 W |
| Dimensions | 1210 × 65 × 140 mm (W × H × D) |
| Dimensions in Inches | 47.6 × 2.5 × 5.5 in (W × H × D) |
| Weight | 6.5 kg (14.3 lb) |
| Finish | Black |
| Mounting | Tabletop or wall mounting; wall bracket included |
Note: Bowers & Wilkins specifies Panorama 3 as an internally amplified wireless soundbar with 400 W amplifier output. Conventional passive-speaker specifications such as nominal impedance, sensitivity, RMS/continuous power handling and recommended external amplifier power are therefore not applicable and are not specified by the manufacturer.
Key Features
- Discrete Dolby Atmos 3.1.2: Dedicated upward-firing Atmos drive units reproduce compatible Dolby Atmos height information for a more immersive home theatre presentation.
- Advanced 13-Driver Array: Combines 3 titanium-dome tweeters, 6 woven glass-fibre bass/midrange drivers, 2 Atmos drivers and 2 low-profile bass units.
- 400 W Integrated Amplification: Built-in amplification powers the complete driver system without requiring a separate AV receiver or external power amplifier.
- Integrated Bass Reproduction: Two 100 mm low-profile bass units provide dedicated low-frequency output, allowing Panorama 3 to operate as a complete single-component soundbar system.
- High-Resolution Audio Support: Supports Dolby Atmos, Dolby TrueHD, Dolby Digital+ and LPCM formats.
- HDMI eARC: HDMI eARC provides a high-bandwidth connection to compatible televisions for home theatre audio.
- Wireless Music Streaming: Supports Apple AirPlay 2, Spotify Connect and Bluetooth 5 with aptX Adaptive, AAC and SBC.
- Bowers & Wilkins Music App: Compatible with the Bowers & Wilkins Music App for setup, control and supported music streaming services.
- Alexa Enabled: Built-in Amazon Alexa compatibility provides voice-control functionality.
- Flexible Installation: The slim 65 mm profile is suitable for placement beneath a television, while the included wall bracket supports wall-mounted installation.
Ideal For
- Dolby Atmos Home Theatre Systems
- Premium TV Audio Upgrades
- Living Room Home Cinema
- 4K / HDR Television Setups
- High-Quality Music Streaming
- Compact Home Theatre Installations
- Wall-Mounted TV Installations
- Premium Wireless Audio Systems
