Description

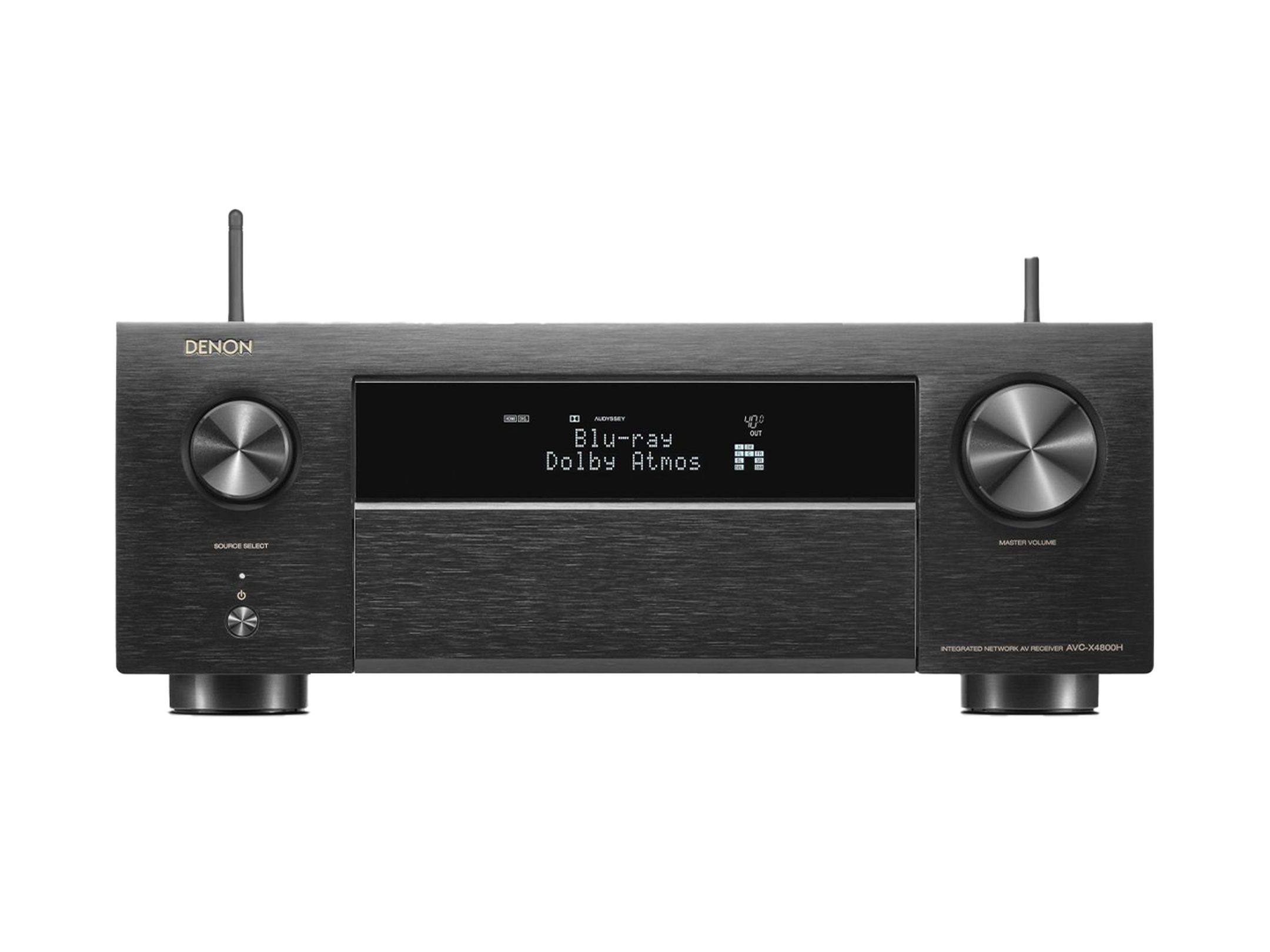

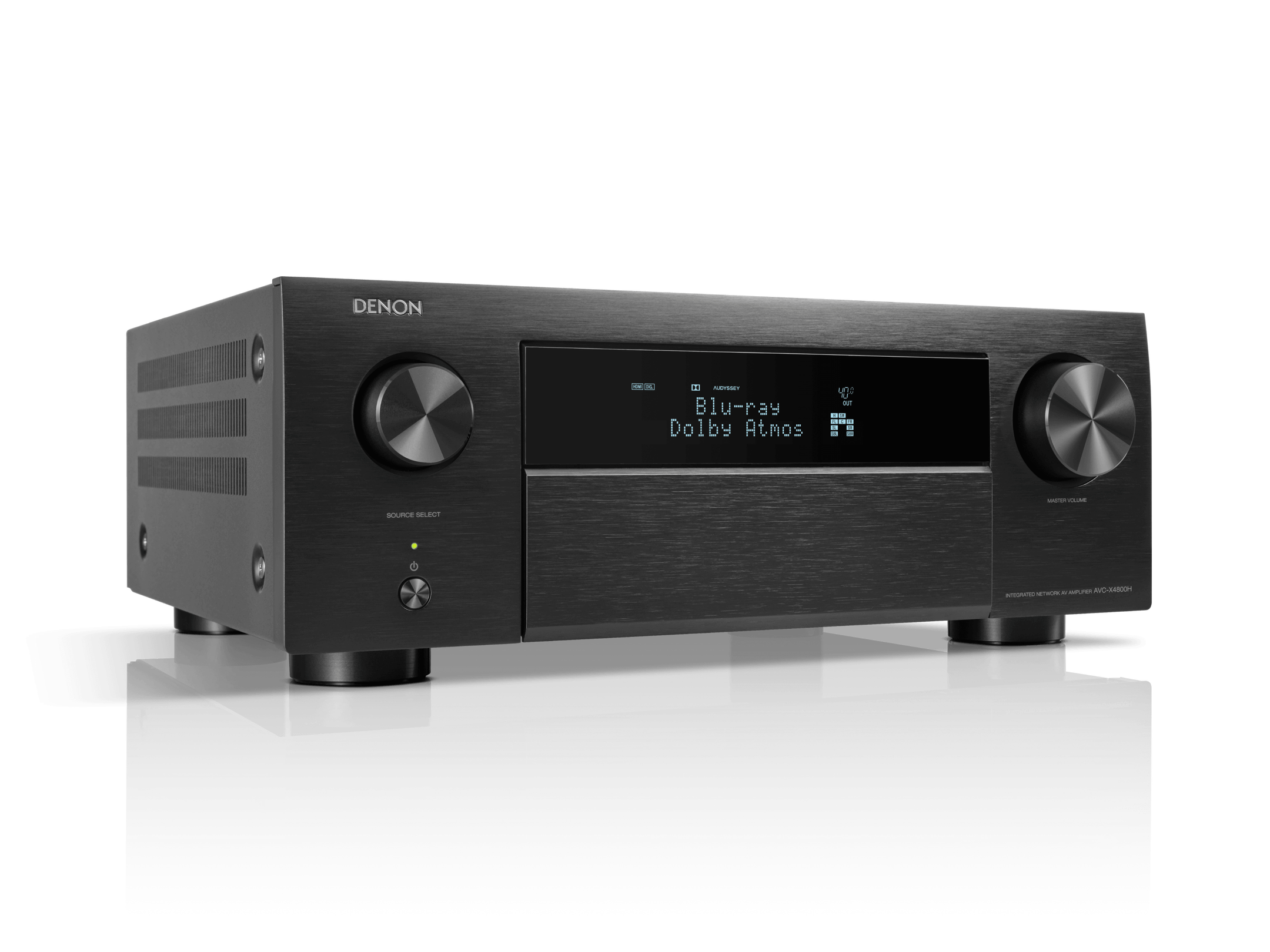

Denon AVC-X4800H 9.4-Channel 8K AV Receiver
The Denon AVC-X4800H is a high-performance 9.4-channel AV receiver designed for premium home theatre, immersive cinema and high-fidelity entertainment systems. With nine discrete power amplifiers delivering 125 watts per channel, the AVC-X4800H combines substantial amplification with advanced audio processing, room correction and modern 8K video connectivity.
Its discrete amplifier section delivers 125W per channel at 8 ohms from 20Hz to 20kHz with 0.05% THD under 2-channel driven conditions. The amplifier supports speakers rated between 4 and 16 ohms, providing flexibility for a wide range of home theatre and Hi-Fi loudspeakers.
The AVC-X4800H supports immersive formats including Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced. Its 11.4-channel processing capability provides additional flexibility beyond its nine built-in amplifier channels, allowing integration with external amplification for more advanced system configurations.
For music playback, Denon’s AL32 Processing Multichannel is combined with support for high-resolution audio formats including ALAC, FLAC, WAV and AIFF up to 24-bit/192kHz. HEOS Built-in, Wi-Fi, Bluetooth and Apple AirPlay 2 provide convenient access to network and wireless music streaming.

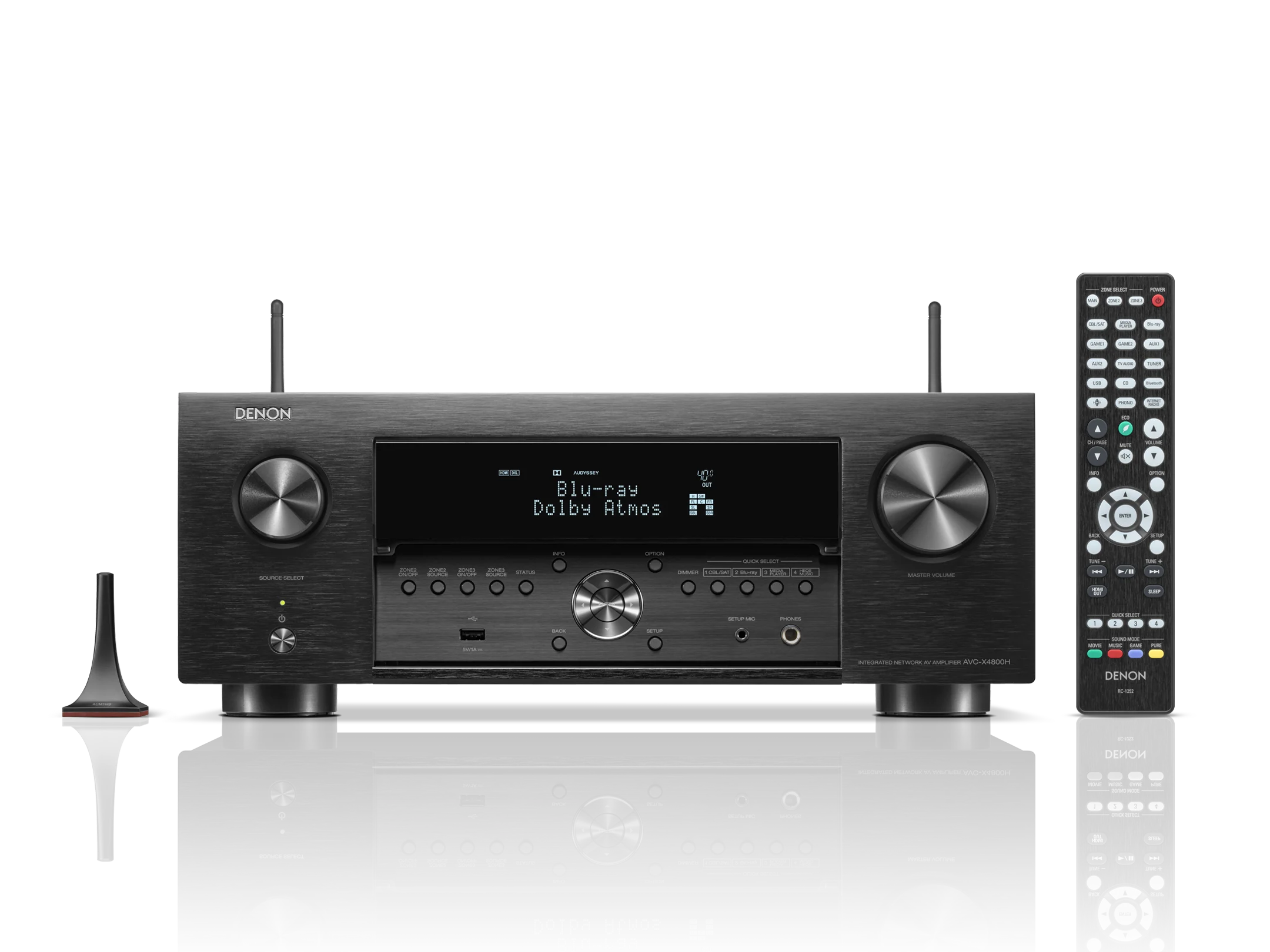

Audyssey MultEQ XT32 provides advanced room calibration using the supplied measurement microphone. The AVC-X4800H is also Dirac Live upgradeable, allowing users to add optional Dirac Live Room Correction and Dirac Live Bass Control capabilities for further acoustic optimization.
Four independent subwoofer outputs allow flexible multi-subwoofer system design and bass management. The receiver also provides 11.4-channel pre-outs, making it suitable for installations that combine the built-in amplification with external power amplifiers.
For video, the AVC-X4800H provides seven HDMI inputs and three HDMI outputs, with all seven HDMI inputs supporting 8K. HDMI 2.1 features include 8K/60Hz and 4K/120Hz pass-through, while HDCP 2.3, Dolby Vision, HDR10+, HDR10 and HLG support make it suitable for modern displays, projectors, streaming devices and gaming systems.
With its combination of powerful nine-channel amplification, 11.4-channel processing, advanced immersive audio formats, extensive HDMI connectivity, HEOS streaming and sophisticated room correction, the AVC-X4800H is well suited to dedicated home cinemas, premium media rooms and custom AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | AVC-X4800H |
| Product Type | 9.4-Channel 8K AV Receiver |
| Number of Power Amplifiers | 9 |
| Maximum Processing Channels | 11.4 channels |
| Rated Power Output | 125W/channel at 8Ω, 20Hz–20kHz, 0.05% THD, 2-channel drive |
| Power Output at 6Ω | 165W/channel at 6Ω, 1kHz, 0.7% THD, 2-channel drive |
| Power Output at 6Ω, 1-Channel | 200W/channel at 6Ω, 1kHz, 1% THD |
| Dynamic Power | 130W × 2 at 8Ω; 190W × 2 at 4Ω |
| Speaker Impedance | 4–16Ω |
| Amplifier Design | Discrete Class AB amplification |
| Frequency Response | 10Hz–100kHz (+1, −3dB, Direct Mode) |
| Signal-to-Noise Ratio | 102dB, IHF-A weighted, Direct Mode |
| Audio Formats | Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced, Dolby TrueHD, DTS-HD Master Audio, Multi-channel PCM |
| High-Resolution Audio | ALAC, FLAC, WAV and AIFF up to 24-bit/192kHz |
| Audio Processing | AL32 Processing Multichannel |
| Room Correction | Audyssey MultEQ XT32; Dirac Live upgradeable |
| HDMI Inputs | 7, all 8K-ready |
| HDMI Outputs | 3, including 1 × eARC |
| HDMI Standard | HDMI 2.1 |
| HDMI Video Pass-Through | 8K/60Hz and 4K/120Hz |
| HDCP | HDCP 2.3 |
| HDR Support | Dolby Vision, HDR10+, HDR10, HLG and Dynamic HDR |
| Video Upscaling | 8K upscaling of compatible 4K content |
| Multichannel Pre-Out | 11.4-channel |
| Subwoofer Outputs | 4 independent outputs |
| Speaker Terminals | 11 |
| Speaker Assignment | Speaker A/B, Bi-Amp and Multi-Room assignable |
| Analog Inputs | 5 |
| Phono Input | MM |
| Digital Inputs | 2 × Optical, 2 × Coaxial |
| Wireless Connectivity | Wi-Fi, Bluetooth and Apple AirPlay 2 |
| Multi-Room / Streaming | HEOS Built-in |
| Multi-Room Zones | 3 |
| Power Consumption | 710W |
| Dimensions with Antenna Vertical | 434 × 389 × 236 mm (W × D × H) |
| Dimensions with Antenna Horizontal | 434 × 389 × 167 mm (W × D × H) |
| Dimensions without Antenna | 434 × 379 × 167 mm (W × D × H) |
| Weight | 13.4 kg |
Key Features
- 9.4-Channel Amplification: Provides nine discrete power amplifier channels with 125W per channel at 8Ω.
- 11.4-Channel Processing: Provides expanded processing capability for advanced immersive audio systems and external amplifier integration.
- Immersive Audio Support: Supports Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced for object-based and immersive surround sound.
- 8K HDMI 2.1 Connectivity: Seven HDMI inputs are 8K-ready, with support for 8K/60Hz and 4K/120Hz video pass-through.
- Four Independent Subwoofer Outputs: Supports flexible multi-subwoofer system design and optimized bass management.
- Audyssey MultEQ XT32: Provides advanced room measurement and acoustic correction for the listening environment.
- Dirac Live Upgradeability: Supports optional Dirac Live Room Correction and Dirac Live Bass Control.
- AL32 Processing Multichannel: Denon’s advanced digital processing technology supports detailed multi-channel audio reproduction.
- HEOS Built-in: Provides network music streaming and multi-room audio functionality.
- Extensive Pre-Out Connectivity: 11.4-channel pre-outs allow integration with external power amplification.
Ideal For
- High-End Home Theatre Systems
- Dedicated Home Cinema Rooms
- Dolby Atmos Immersive Audio Systems
- Premium Hi-Fi and AV Systems
- Large Media Rooms
- 8K Home Theatre Systems
- Multi-Subwoofer Home Cinema Installations
- Custom AV Installations
- Advanced Multi-Zone Entertainment Systems
