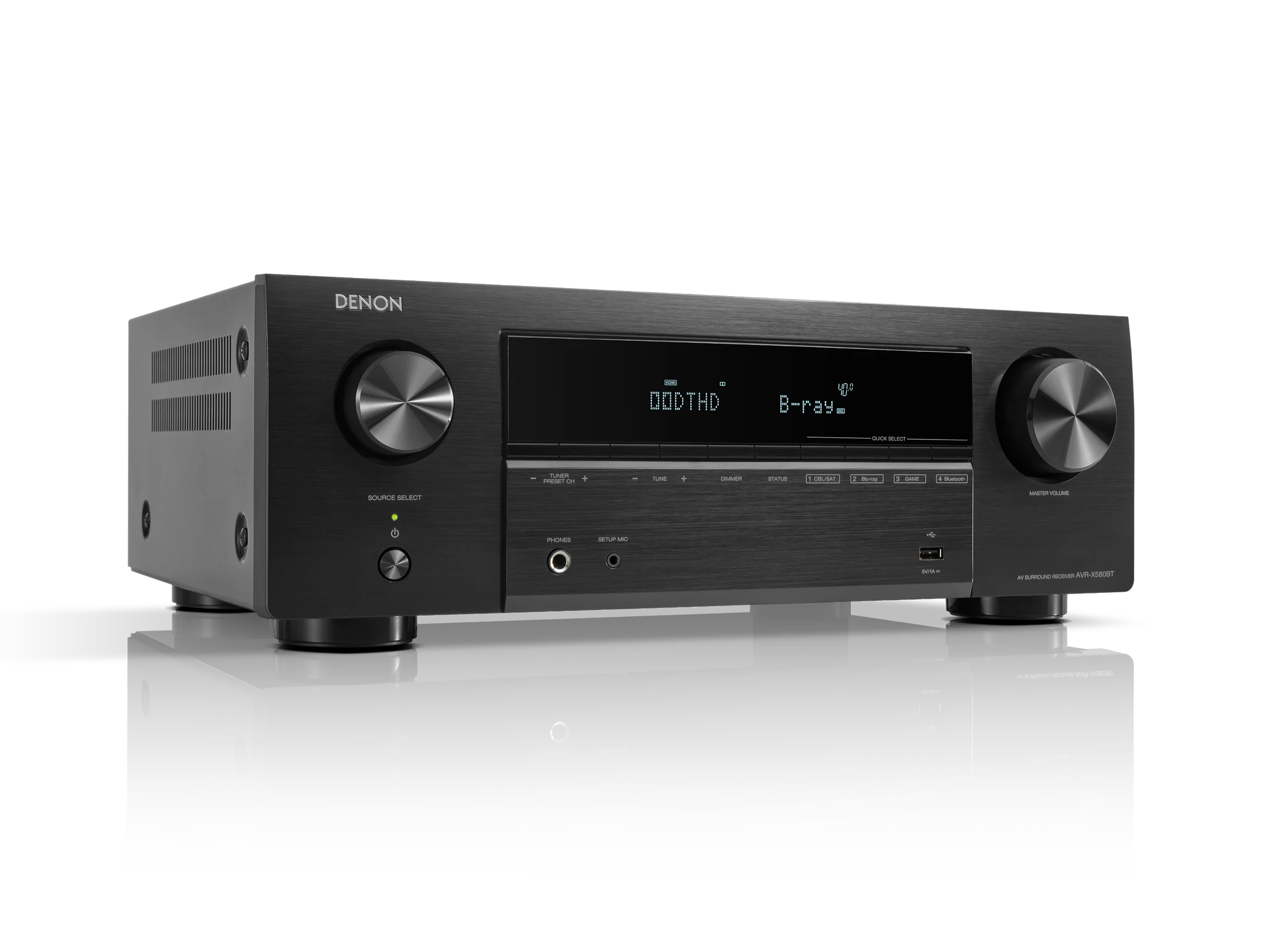

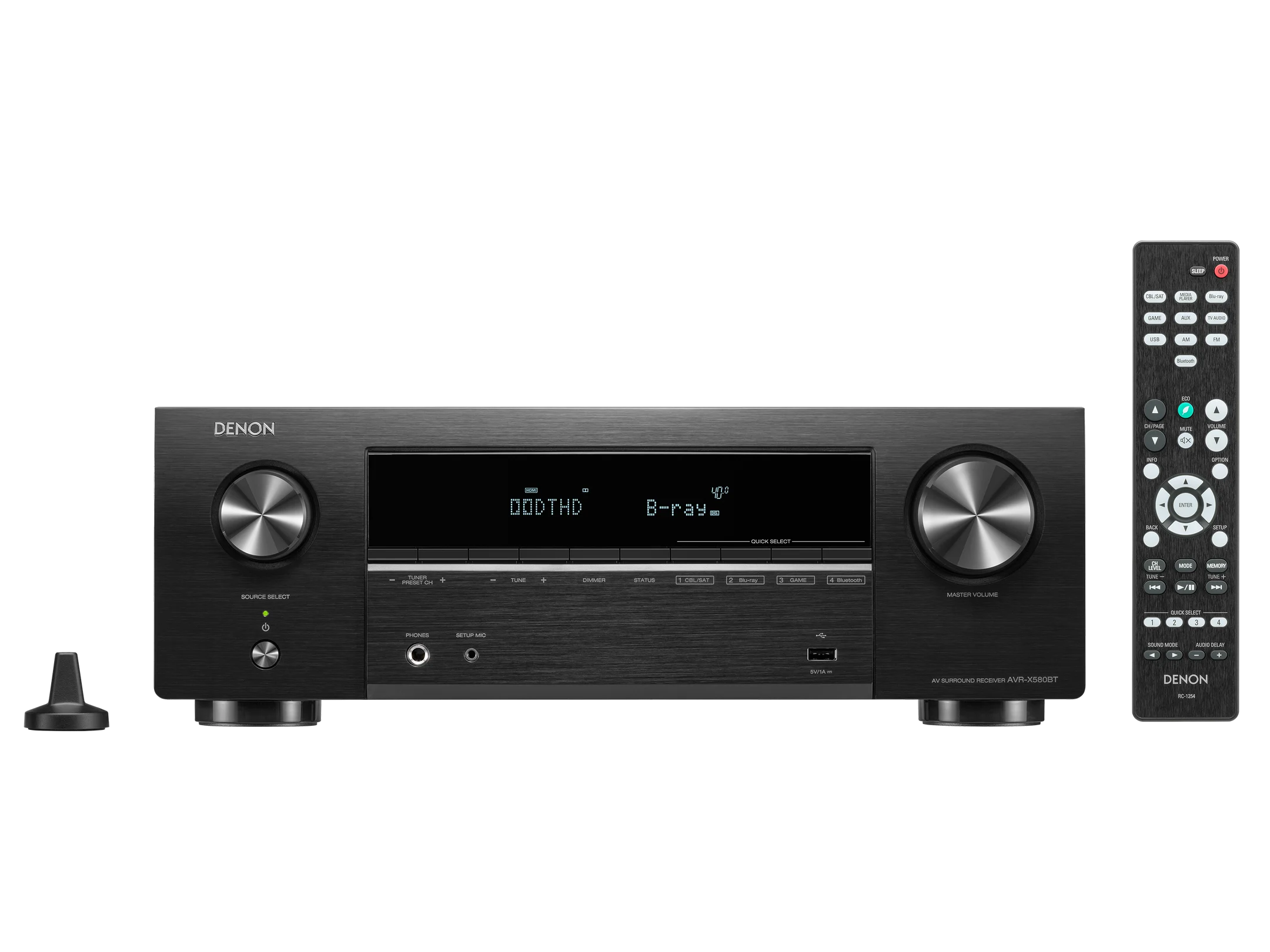

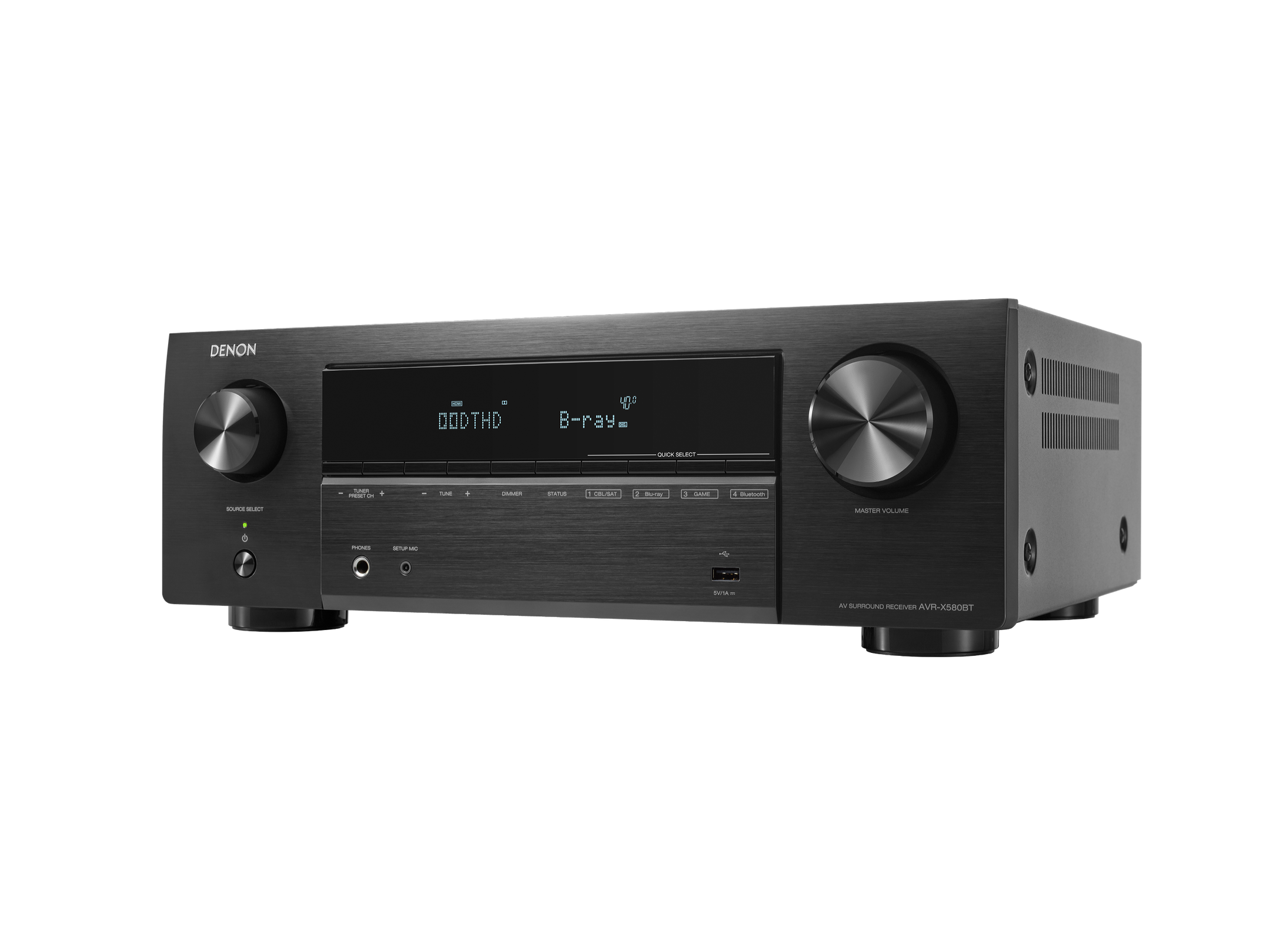

Denon AVR-X580BT 5.2-Channel 8K AV Receiver
The Denon AVR-X580BT is a 5.2-channel AV receiver designed to provide immersive home theatre performance with modern 8K video connectivity and convenient wireless music playback. Its five-channel discrete amplification section delivers 70W per channel at 8 ohms, providing a practical foundation for compact home cinema and surround sound systems.
The amplifier delivers 70W + 70W at 8 ohms from 20Hz to 20kHz with 0.08% THD under Denon’s specified conditions. At 6 ohms, it delivers 90W per channel at 1kHz and 0.7% THD. The speaker output section is specified for 6–16 ohm loads.
For movie soundtracks, the AVR-X580BT supports Dolby TrueHD, Dolby Digital and DTS-HD formats, including lossless surround sound playback. Its 5.1-channel processing architecture is suited to conventional surround configurations, while two subwoofer outputs allow flexible low-frequency integration.
The receiver features automatic speaker setup using a measurement microphone, helping simplify system configuration. Its guided setup approach makes it suitable for users building a home theatre without requiring complex manual calibration.
The AVR-X580BT supports 8K video pass-through and 8K upscaling of compatible 4K content. Its HDMI connectivity supports 8K/60Hz and 4K/120Hz signals, while Dolby Vision, HDR10+, Dynamic HDR and HLG provide compatibility with modern HDR displays and video sources.
Gaming connectivity includes Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for compatible gaming sources and displays.
For music playback, Bluetooth provides convenient wireless streaming from compatible smartphones, tablets and computers. The front USB input supports high-resolution audio playback from compatible USB storage devices, including WAV, FLAC and ALAC files up to 24-bit/192kHz.
With its compact 5.2-channel architecture, 8K video support, lossless Dolby and DTS decoding, automatic speaker setup and Bluetooth connectivity, the AVR-X580BT is well suited to compact home theatres, living-room entertainment systems, gaming setups and straightforward AV installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Denon |
| Model | AVR-X580BT |
| Product Type | 5.2-Channel 8K AV Receiver |
| Number of Power Amplifiers | 5 |
| Processing Channels | 5.1 channels |
| Rated Power Output | 70W/channel at 8Ω, 20Hz–20kHz, 0.08% THD |
| Power Output at 6Ω | 90W/channel at 6Ω, 1kHz, 0.7% THD |
| Speaker Impedance | 6–16Ω |
| Frequency Response | 10Hz–100kHz (+1, −3dB, Direct Mode) |
| Signal-to-Noise Ratio | 98dB, IHF-A weighted, Direct Mode |
| Audio Formats | Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio, DTS Surround |
| High-Resolution USB Audio | Up to 24-bit/192kHz |
| USB Audio Formats | MP3, WMA, WAV, MPEG-4/AAC, FLAC and ALAC |

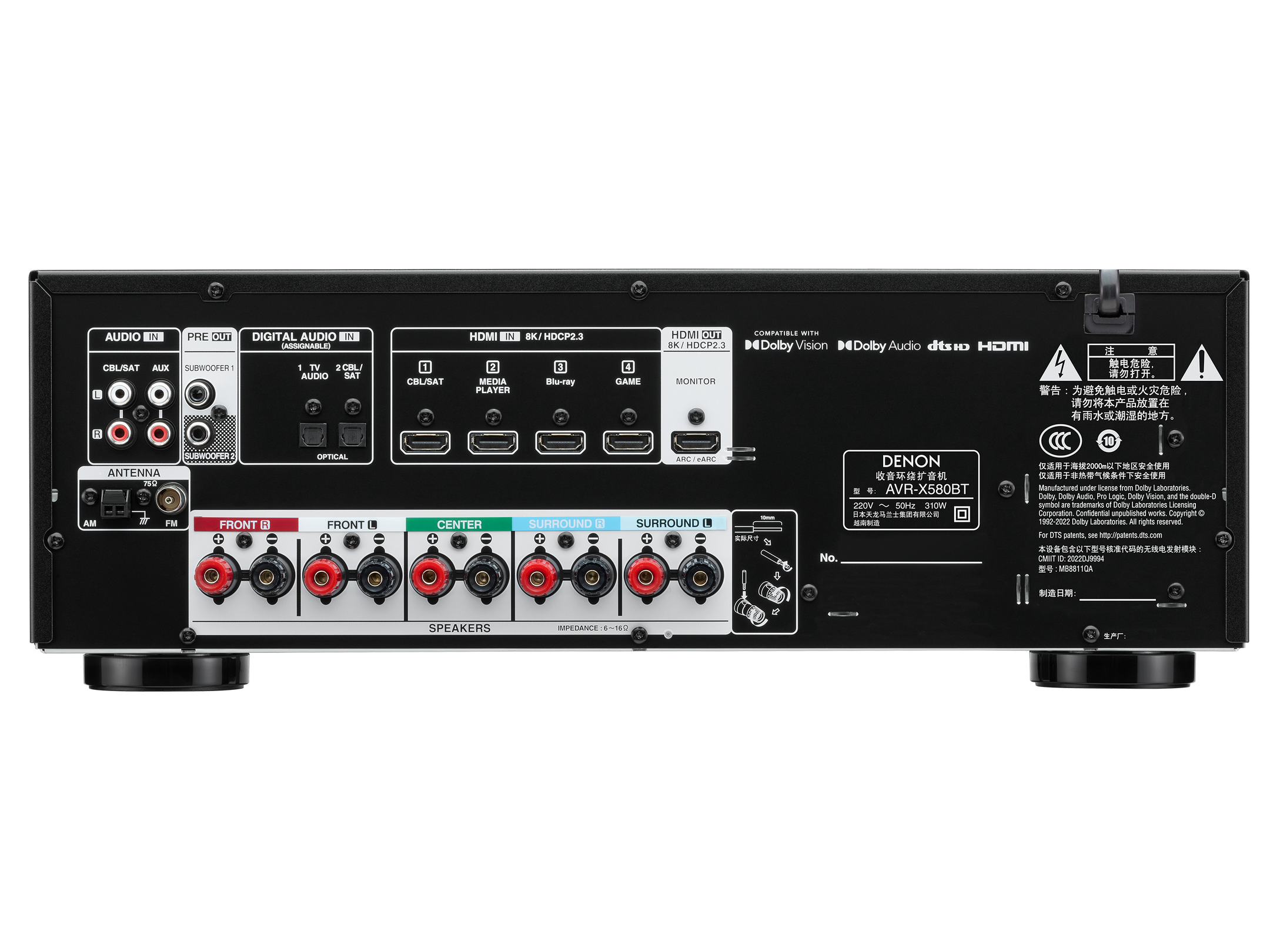

| HDMI Inputs | 4 |
| HDMI Outputs | 1 |
| HDMI Video Pass-Through | 8K/60Hz and 4K/120Hz |
| HDCP | HDCP 2.3 |
| HDR Support | Dolby Vision, HDR10+, Dynamic HDR and HLG |
| Gaming Features | VRR, QFT and ALLM |
| Subwoofer Outputs | 2 |
| Speaker Terminals | 5 |
| Digital Inputs | 2 × Optical, 1 × Coaxial |
| Analog Inputs | 2 |
| Wireless Connectivity | Bluetooth 4.2 |
| USB | Front USB input for compatible audio playback |
| Setup | Automatic speaker setup by microphone |
| App Control | Denon 500 Series Remote App |
| Dimensions | 434 × 330 × 151 mm (W × D × H), maximum official dimensions |
| Weight | 7.6 kg |
Key Features
- 5.2-Channel Amplification: Five discrete amplifier channels deliver 70W per channel at 8Ω under specified conditions.
- 8K Video Support: Supports 8K/60Hz pass-through and 8K upscaling of compatible 4K content.
- 4K/120Hz Gaming: Supports 4K/120Hz, VRR, QFT and ALLM with compatible gaming equipment.
- Lossless Surround Sound: Supports Dolby TrueHD and DTS-HD formats for high-quality movie soundtracks.
- Dual Subwoofer Outputs: Two subwoofer connections provide flexibility for 5.2-channel system configurations.
- HDR Compatibility: Supports Dolby Vision, HDR10+, Dynamic HDR and HLG.
- Automatic Speaker Setup: Microphone-based setup helps configure speaker settings for the listening environment.
- Bluetooth Streaming: Enables wireless music playback from compatible smartphones, tablets and computers.
- USB High-Resolution Audio: Supports compatible high-resolution audio files up to 24-bit/192kHz through the front USB port.
- Compact AV Platform: Provides essential home theatre and 8K connectivity in a relatively compact 5.2-channel receiver.
Ideal For
- Compact Home Theatre Systems
- 5.2-Channel Surround Sound Systems
- Living Room Entertainment Systems
- 8K Home Theatre Installations
- Gaming & Entertainment Systems
- TV and Projector-Based AV Systems
- Small to Medium Media Rooms
- Bluetooth Music Streaming
- Simple Custom AV Installations
