Description
JBL Bar 1300MK2 11.1.4 Channel Soundbar System
The JBL Bar 1300MK2 is a premium 11.1.4-channel home theatre soundbar system designed to deliver immersive Dolby Atmos® and DTS:X® spatial audio without the complexity of a conventional wired surround system. It combines a high-output main soundbar, two detachable wireless surround speakers and a powerful dual-8-inch wireless subwoofer.
The soundbar incorporates eight 50 × 75 mm racetrack drivers, seven 1-inch (25 mm) tweeters and four 3-inch (75 mm) up-firing full-range drivers. The up-firing drivers are designed to reproduce height effects for Dolby Atmos® content, while JBL MultiBeam™ 3.0 technology helps create a wider and more immersive soundstage.

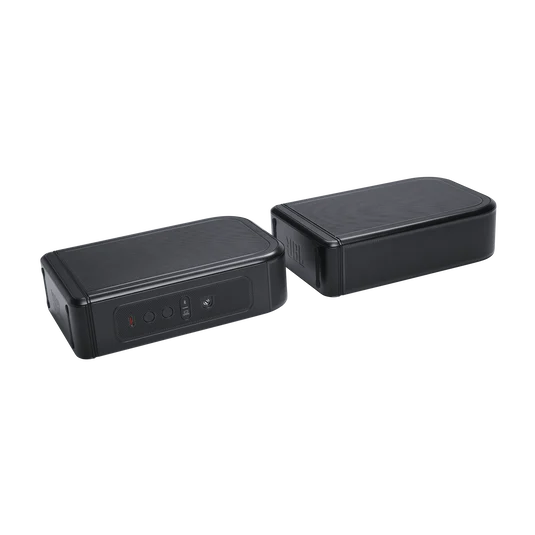

The two detachable wireless surround speakers add dedicated rear-channel and height-channel reproduction without requiring permanent speaker wiring. Each surround speaker contains two 50 × 90 mm racetrack drivers, one 2-inch (50 mm) full-range driver and one 3-inch (75 mm) up-firing full-range driver. Their integrated lithium batteries provide up to 10 hours of playback depending on content and volume.
For low-frequency reproduction, the JBL Bar 1300MK2 includes a wireless subwoofer equipped with two 8-inch (200 mm) drivers. JBL specifies up to 1200W maximum output for the subwoofer at 1% THD, providing dedicated bass reproduction for movie soundtracks, music and gaming.
The complete system is rated at up to 2470W maximum speaker output at 1% THD, with a published RMS figure of 1235W at 1% THD. JBL specifies a system frequency response of 33Hz–20kHz (-6dB).
Connectivity is extensive, with three HDMI inputs and one HDMI eARC output. The system supports HDR10+ and Dolby Vision passthrough, making it suitable for modern 4K entertainment sources. Optical input, Bluetooth and USB provide additional playback options.
The JBL Bar 1300MK2 also incorporates Wi-Fi connectivity and works with supported music streaming and smart-home ecosystems. The JBL ONE app provides system setup, sound customization, equalization and software updates. Features include PureVoice 2.0, SmartDetails, AI Sound Boost, night listening, easy sound calibration and broadcasting functionality.
When detached from the main soundbar, either or both surround speakers can also be paired with Bluetooth devices for portable playback around the home. When they are returned to the soundbar, they recharge for the next listening session.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | JBL |
| Model | Bar 1300MK2 |
| Product Type | 11.1.4-Channel Soundbar System with Wireless Surround Speakers and Subwoofer |
| Sound System | 11.1.4 channel |
| Total Speaker Output | 2470W maximum @ 1% THD |
| Total RMS Output | 1235W RMS @ 1% THD |
| Soundbar Output | 950W maximum @ 1% THD |
| Surround Speaker Output | 2 × 160W maximum @ 1% THD |
| Subwoofer Output | 1200W maximum @ 1% THD |
| Soundbar Drivers | 8 × 50 × 75 mm racetrack drivers + 7 × 1-inch (25 mm) tweeters + 4 × 3-inch (75 mm) up-firing full-range drivers |
| Surround Drivers | Each: 2 × 50 × 90 mm racetrack drivers + 1 × 2-inch (50 mm) full-range driver + 1 × 3-inch (75 mm) up-firing full-range driver |
| Subwoofer Drivers | 2 × 8-inch (200 mm) drivers |
| Audio Formats | Dolby Atmos®, DTS:X® |
| Sound Technologies | MultiBeam™ 3.0, PureVoice 2.0, SmartDetails, AI Sound Boost |
| Frequency Response | 33Hz–20kHz (-6dB) |
| HDMI Inputs | 3 |
| HDMI Output | 1 × HDMI eARC |
| HDMI HDCP | HDCP 2.3 |
| HDR Passthrough | HDR10+, Dolby Vision |
| Optical Input | 1 |
| Bluetooth | Main soundbar: Bluetooth 5.3; detachable surround speakers: Bluetooth 5.4 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, 2.4GHz and 5GHz |
| USB | Type-A; MP3 playback supported in applicable regional versions |
| Surround Battery | 7.2V, 4722mAh lithium battery in each detachable surround speaker |
| Surround Playback | Up to 10 hours, depending on content and volume |
| Soundbar Dimensions | 1030 × 58 × 136 mm (W × H × D) |
| Total Soundbar Dimensions with Surrounds Attached | 1404 × 58 × 136 mm (W × H × D) |
| Detachable Surround Dimensions | 202 × 58 × 136 mm each (W × H × D) |
| Subwoofer Dimensions | 315 × 277 × 275 mm (W × H × D) |
| Soundbar Weight | 5.93 kg |
| Surround Speaker Weight | 1.3 kg each |
| Subwoofer Weight | 12 kg |
| Power Supply | 100–240V AC, 50/60Hz |
| Wall Mounting | Supported; mounting brackets supplied for soundbar and surround speakers |
Key Features
- 11.1.4-Channel Home Theatre: Combines the main soundbar, two detachable surround speakers and wireless subwoofer for immersive multi-channel sound.
- True Dolby Atmos® & DTS:X®: Supports object-based spatial audio with dedicated up-firing drivers for height effects.
- 2470W Maximum Output: Provides up to 2470W total speaker output at 1% THD, with 1235W RMS specified at 1% THD.
- Detachable Wireless Surround Speakers: Remove the rear speakers from the soundbar and position them behind the listening area without permanent speaker wiring.
- Up to 10-Hour Battery: The detachable surround speakers provide up to 10 hours of playback depending on content and volume.
- Dual 8-Inch Wireless Subwoofer: Two 200 mm drivers provide dedicated low-frequency reproduction, with up to 1200W maximum output at 1% THD.
- MultiBeam™ 3.0: Creates a wider soundstage for a more immersive home theatre presentation.
- PureVoice 2.0: Enhances dialogue intelligibility for compatible content.
- AI Sound Boost: JBL technology designed to enhance the performance of the compact wireless subwoofer.
- HDMI eARC: Supports high-bandwidth audio connectivity from compatible televisions.
- 4K HDR Passthrough: Supports HDR10+ and Dolby Vision passthrough through HDMI.
- Portable Bluetooth Speakers: The detachable surround speakers can be used independently with compatible Bluetooth devices.
- JBL ONE App: Provides system setup, EQ customization, streaming access and software updates.
- Wireless Streaming: Supports Wi-Fi, Bluetooth, AirPlay, Google Cast, Spotify and other supported streaming ecosystems.
Ideal For
- Premium Dolby Atmos Home Theatre Systems
- Dedicated Home Cinema Rooms
- Large Living Room Entertainment Systems
- 4K and 8K TV Entertainment
- Movies and Streaming Services
- Gaming
- Music Streaming
- Wireless Surround Sound Installations
- Multi-Room Audio Systems
