Description

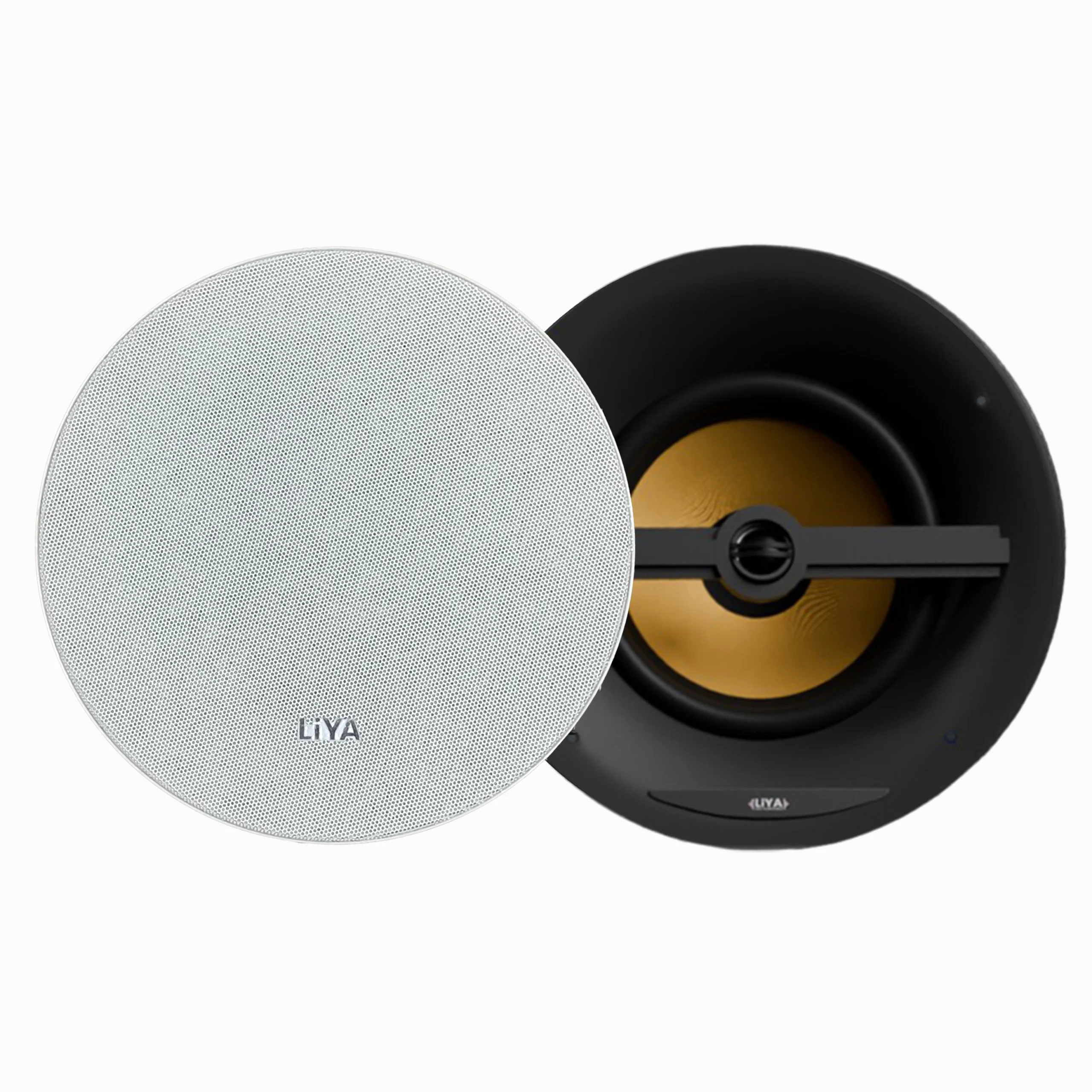

LiYA CS65 6.5″ In-Ceiling Speaker
The LiYA CS65 is a passive Hi-Fi in-ceiling speaker designed for discreet architectural audio installations where high-quality sound needs to integrate cleanly into the room. Its two-way driver configuration combines a 6.5-inch Kevlar cone woofer with a 1-inch silk-dome tweeter, providing balanced reproduction for music, home theatre and distributed audio systems.
The Kevlar cone woofer uses a lightweight yet rigid diaphragm designed to maintain control through the low and mid-frequency range. It is partnered with a 1-inch silk-dome tweeter for smooth high-frequency reproduction, giving the CS65 a manufacturer-specified frequency response of 60Hz to 20kHz.
With a nominal impedance of 8 ohms and a sensitivity of 90dB at 1W/1m, the CS65 is designed to work efficiently with a broad range of conventional stereo amplifiers and AV receivers. LiYA specifies a power-handling range of 30 to 100 watts per speaker.
The speaker uses a low-profile flush-mount design with a 225mm outer diameter and a 210mm ceiling cut-out. A paintable magnetic grille is included, allowing the installed speaker to blend discreetly into the surrounding ceiling finish. LiYA also specifies a professional clamp mounting system for secure installation in suitable ceiling materials.
The CS65 is suitable for stereo background music, whole-home distributed audio, media rooms and home theatre applications. In surround installations, it can also be used as an overhead ceiling channel where a discreet architectural loudspeaker is required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LiYA |
| Model | CS65 |
| Product Type | Passive Hi-Fi In-Ceiling Speaker |
| Sold As | Per Unit |
| Configuration | 2-Way In-Ceiling Speaker |
| Woofer | 1 × 6.5″ Kevlar Cone Woofer |
| Tweeter | 1 × 1″ Silk Dome Tweeter |
| Frequency Response | 60Hz–20kHz |
| Power Handling | 30–100 Watts |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 90dB (1W/1m) |
| Outer Diameter | 225 mm |
| Overall Dimensions | 225 × 105 mm |
| Cut-Out Diameter | 210 mm |
| Mounting Depth | 128 mm as listed on LiYA’s current technical specification sheet |
| Installation Type | Flush-Mount In-Ceiling |
| Mounting System | Integrated clamp mounting system |
| Grille | Paintable Magnetic Grille Included |
| Grille Design | Low-Profile / Bezel-Free Architectural Design |
| Application | Home Theatre, Hi-Fi, Multi-Room and Distributed Audio |
Key Features
- 6.5″ Kevlar Woofer: Rigid Kevlar cone construction is designed to provide controlled mid-bass and detailed midrange reproduction.
- 1″ Silk-Dome Tweeter: Provides smooth and detailed high-frequency reproduction for music and movie soundtracks.
- 60Hz–20kHz Response: Wide frequency coverage makes the CS65 suitable for both music playback and architectural home theatre applications.
- 90dB Sensitivity: Efficient output allows the speaker to work effectively with a broad range of suitable stereo amplifiers and AV receivers.
- 30–100W Power Handling: Provides useful amplifier-matching flexibility for residential and custom-install audio systems.
- 8-Ohm Nominal Impedance: Conventional impedance simplifies integration with many standard Hi-Fi amplifiers and AV receivers.
- Paintable Magnetic Grille: The supplied low-profile grille can be finished to match the ceiling for a discreet architectural installation.
- 210mm Cut-Out: Compact ceiling opening supports clean flush-mount installation.
- Clamp Installation System: Integrated mounting clamps secure the speaker into suitable ceiling material for a stable installation.
Ideal For
- Home Theatre Ceiling Channels
- Dolby Atmos Overhead Speaker Installations
- Hi-Fi Music Systems
- Multi-Room Audio
- Distributed Background Music
- Living Rooms and Media Rooms
- Custom Architectural Audio Installations
- Residential and Commercial Audio Systems
