Description

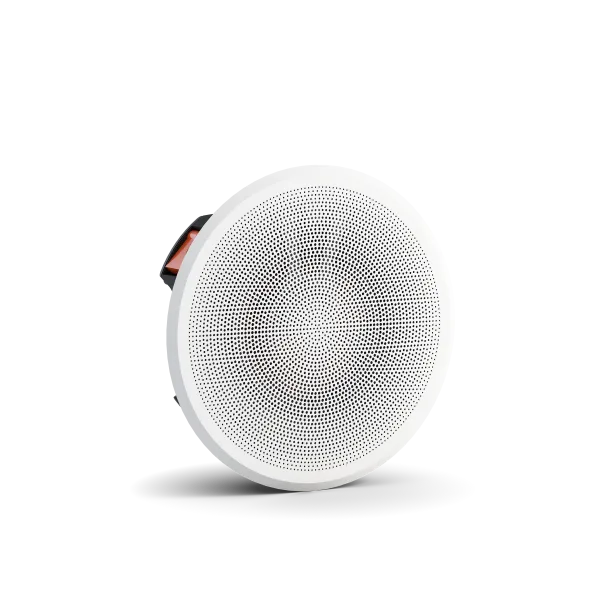

DALI PHANTOM E-60 is a versatile 6.5-inch architectural loudspeaker designed to provide a complete, room-filling audio experience while remaining discreetly integrated into the ceiling or wall. Its 2-way design combines a 6.5-inch polypropylene woofer with a soft-dome tweeter for detailed and balanced reproduction across music and movie content.
The PHANTOM E-60 is suitable for use as a stereo speaker in living rooms, kitchens and family rooms, or as a side/rear speaker in a home cinema system. DALI’s wide-dispersion approach is designed to provide a larger listening sweet spot, while the integrated adjustment controls allow the speaker to be fine-tuned for different room positions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DALI |
| Model | PHANTOM E-60 |
| Series | PHANTOM E |
| Speaker Type | 2-Way Architectural Speaker |
| Woofer | 1 × 6.5″ Polypropylene Cone |
| Tweeter | 1 × 25 mm Soft Dome |
| Frequency Range | 52 – 25,000 Hz ±3 dB |
| Sensitivity | 88 dB @ 2.83 V/1 m |
| Nominal Impedance | 8 Ω |
| Maximum SPL | 105 dB @ 1 m |
| Recommended Amplifier Power | 30 – 120 W |
| Crossover Frequency | 3,300 Hz |
| Connection Input | Single Wire |
| Installation | In-Ceiling / In-Wall |
| Dimensions | Ø258 × 99 mm |
| Dimensions (Inches) | Ø10.2 × 3.9″ |
| Cut-Out Diameter | Ø225 mm / 8.86″ |
| Functions | Normal/HF Tilt, Focus/Distributed |
| Weight | 1.92 kg / 4.25 lb |
| Finish | White |

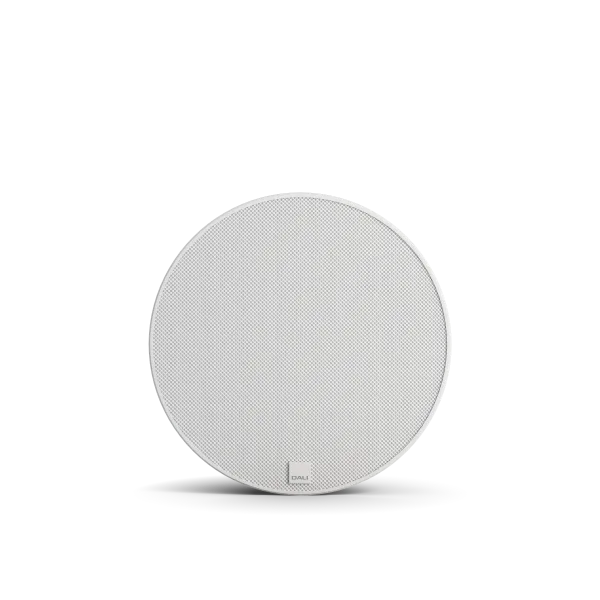

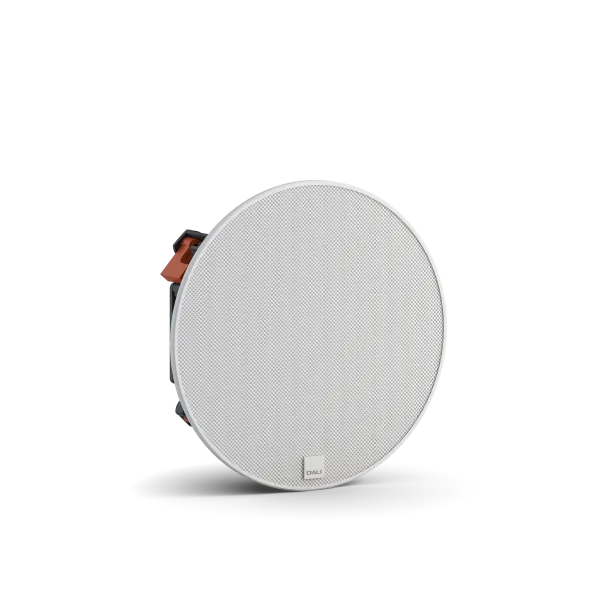

| Grille | White Front Grille |
| Optional Accessory | Square Front Grille |
Technical specifications are based on DALI’s official PHANTOM E-60 product information and E-Series documentation.
Key Features
- 6.5-Inch Polypropylene Woofer: Designed for balanced and durable low/mid-frequency reproduction.
- 25 mm Soft Dome Tweeter: Provides detailed high-frequency reproduction.
- Wide Dispersion: Designed to provide a broad listening sweet spot, particularly useful for in-wall and in-ceiling applications.
- Adjustable Sound Performance: Normal/HF Tilt and Focus/Distributed settings allow the speaker to be optimized for different installation conditions.

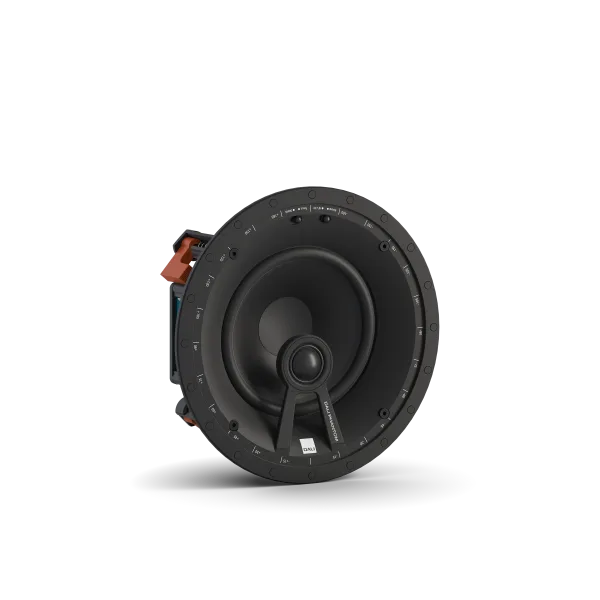

- Angled Woofer: The woofer is tilted to improve directionality and soundstage positioning.
- In-Ceiling & In-Wall Installation: Offers flexibility for different architectural audio designs.

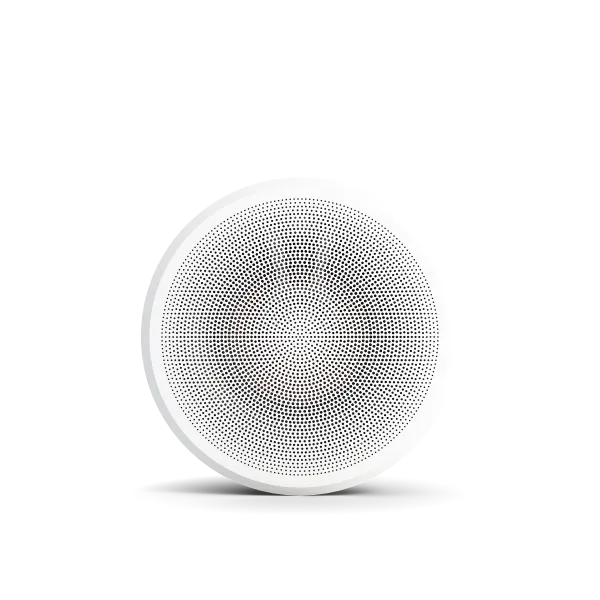

- Discreet Magnetic Grille: Thin magnetic grille integrates neatly with the surrounding interior.

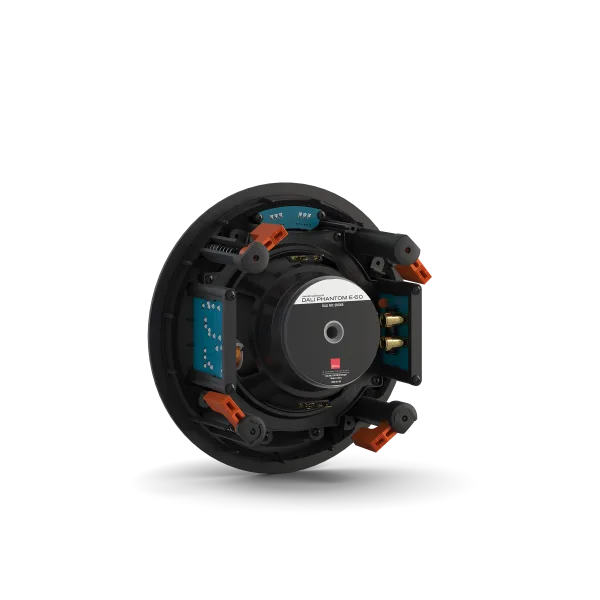

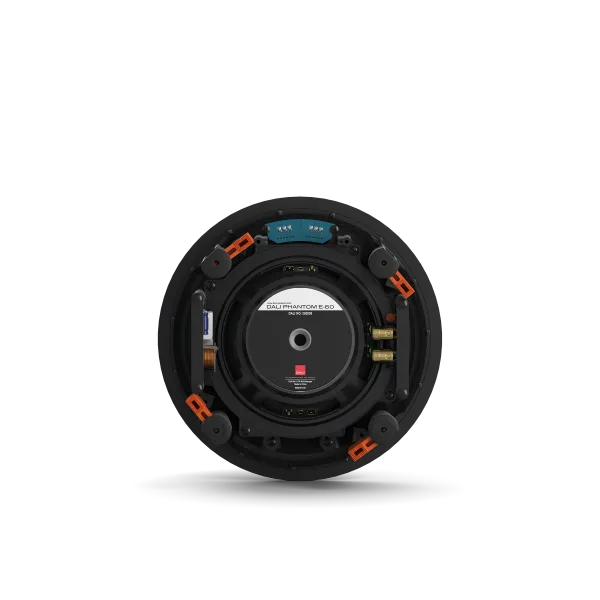

- Easy Installation: DALI’s dogleg mounting system is designed for quick and secure installation.
- Efficient Performance: The low-loss driver design allows the PHANTOM E-60 to work effectively with compatible amplifiers.
Ideal For
- Premium Home Theatre
- In-Ceiling Surround Sound
- In-Wall Audio
- Stereo Music Systems
- Whole-Home Audio
- Multi-Room Audio
- Living Rooms & Family Rooms
- Dedicated Media Rooms
- Custom Residential AV Installations
