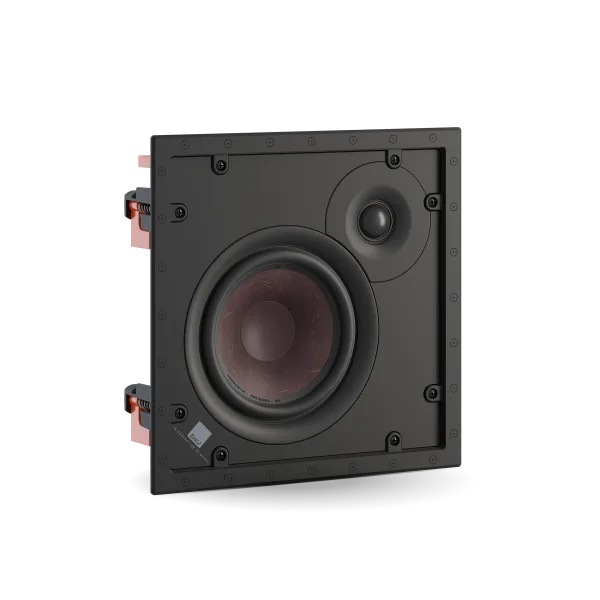

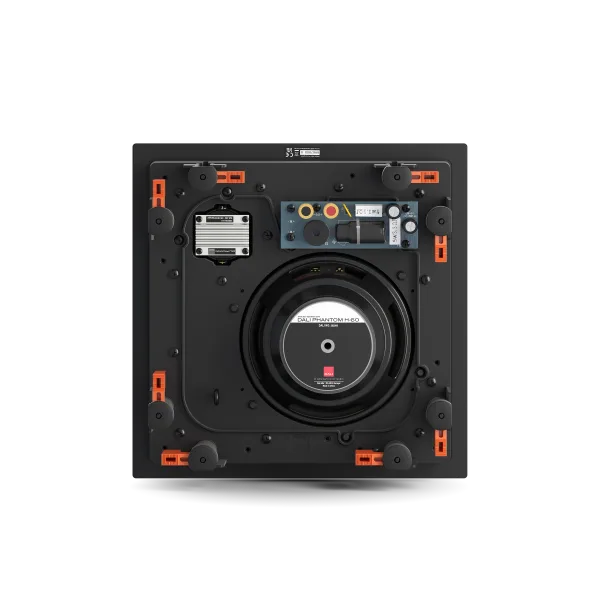

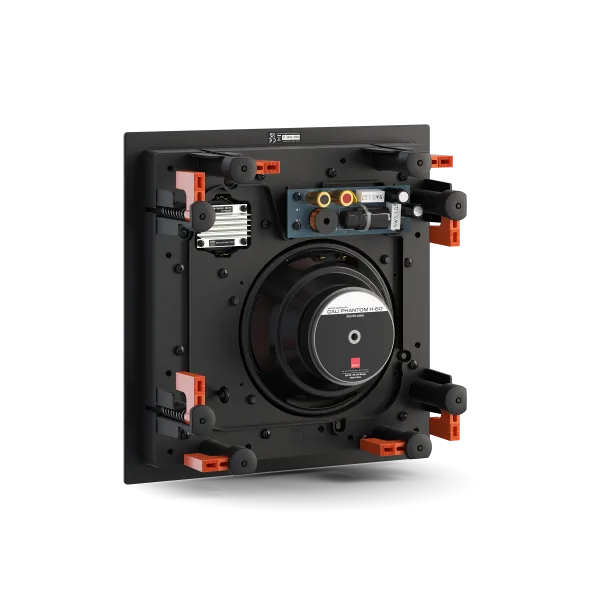

DALI PHANTOM H-60 In-Wall Speaker
The DALI PHANTOM H-60 is a premium 2-way architectural loudspeaker designed for discreet in-wall installation in high-quality stereo and home theatre systems. Supplied as a pair, it combines a 6½-inch low/mid-frequency driver with a 28 mm soft-dome tweeter to provide detailed, natural and dynamic sound while maintaining a clean, flush-mounted appearance.
The speaker’s 6½-inch low/mid driver uses DALI’s paper-pulp and wood-fibre cone technology, which is designed to provide a natural and coherent midrange together with controlled bass reproduction. The lightweight 28 mm soft-dome tweeter delivers detailed high frequencies with wide dispersion, helping create a large and consistent listening area.
With a frequency response of 51–25,000 Hz, sensitivity of 89 dB and a maximum SPL of 107 dB, the PHANTOM H-60 provides strong full-range performance from a relatively compact architectural speaker. DALI recommends an amplifier power range of 30–150 watts.
The PHANTOM H-60 is designed to integrate seamlessly into walls, making it particularly suitable for installations where conventional floorstanding or bookshelf speakers are not desirable. Its discreet grille and flush installation allow the speaker to blend into the room while still delivering the dynamic performance expected from a dedicated DALI loudspeaker.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DALI |
| Model | PHANTOM H-60 |
| Series | PHANTOM H Series |
| Product Type | In-Wall Architectural Speaker |
| Package Quantity | Per Pair |
| Configuration | 2-Way |
| Frequency Response | 51 – 25,000 Hz |
| Sensitivity | 89 dB @ 1 m for 2.83 V |
| Nominal Impedance | 6 Ω |
| Maximum SPL | 107 dB |
| Recommended Amplifier Power | 30 – 150 W |
| Crossover Frequency | 2,500 Hz |
| High-Frequency Driver | 1 × 28 mm Soft Dome |
| Low/Mid Frequency Driver | 1 × Ø16.5 cm / 6½ Inch |
| Low/Mid Diaphragm | Paper Pulp & Wood Fibre Cone |
| Enclosure Principle | Open Baffle |
| Connection Input | Single Wire |
| Recommended Placement | In-Wall |
| Dimensions | Approximately 290 × 290 × 100 mm |
| Installation | Flush Mount |
Key Features
- 6½-Inch Low/Mid Driver: Delivers balanced bass and detailed midrange reproduction for music and cinematic content.
- 28 mm Soft-Dome Tweeter: Provides smooth, detailed high-frequency reproduction with wide dispersion.
- 2-Way Architecture: The dedicated low/mid driver and tweeter are integrated through a carefully designed crossover for coherent full-range sound.
- Wood Fibre Cone Technology: The paper-pulp and wood-fibre diaphragm helps deliver a natural and detailed sound character with controlled cone resonance.
- Wide Dispersion: Designed to provide a broad listening area, making it suitable for multi-seat home theatre environments.
- High Output Capability: With a maximum SPL of 107 dB, the PHANTOM H-60 can deliver dynamic performance for movies and music.
- Flush Architectural Installation: The speaker sits discreetly inside the wall for a clean, integrated appearance.
- Simple Installation: The mounting system is designed to make secure installation straightforward for custom AV installers.
- Flexible Application: Suitable for front, centre, surround and distributed audio applications depending on system configuration.
Ideal For
- Home Theatre Systems
- Dedicated Home Cinema
- In-Wall Stereo Systems
- Surround Sound Systems
- Multi-Room Audio
- Living Rooms & Media Rooms
- Custom Residential AV Installations
- Architectural Audio Systems
