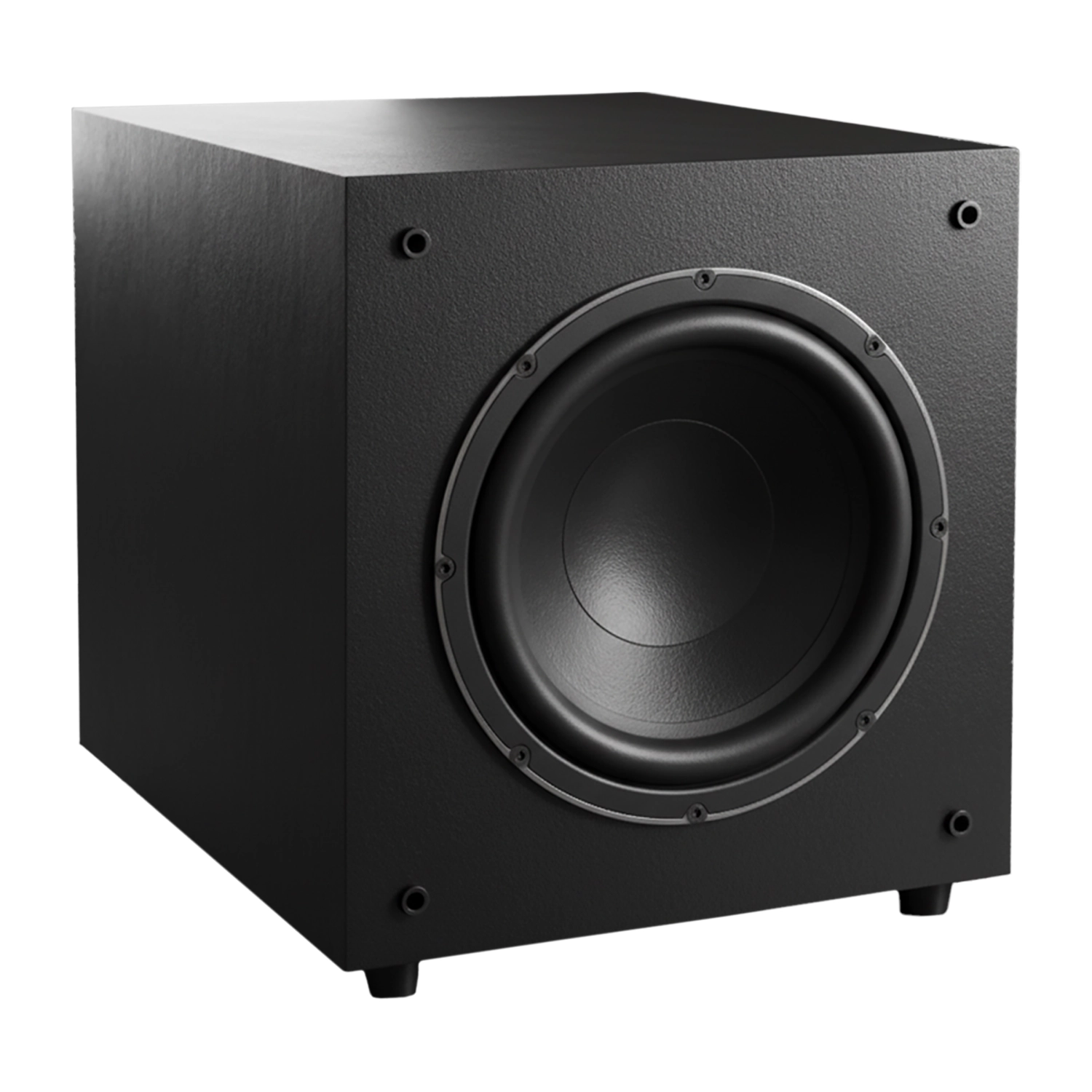

LiYA S10 10″ Active Subwoofer – 300W Class D DSP Amplifier with Dual 10″ Driver Architecture

The LiYA S10 is a high-performance powered subwoofer designed to add deep, controlled low-frequency impact to home theatre and Hi-Fi audio systems. Its distinctive dual-driver architecture combines a 10-inch front-firing active woofer with a separate 10-inch down-firing passive radiator.

The main 10-inch treated paper-cone driver is powered by an integrated 300-watt Class D amplifier. Built-in Digital Signal Processing (DSP) helps manage the subwoofer’s low-frequency performance and provides precise control of the active driver system.

Instead of using a conventional bass-reflex port, the S10 employs a 10-inch passive radiator mounted on the underside of the enclosure. This arrangement increases effective low-frequency output while avoiding the airflow turbulence and port noise associated with traditional vented designs.

LiYA specifies a frequency response of 30Hz to 250Hz and a maximum SPL output of 101dB. This provides substantial low-frequency extension for movie soundtracks, music and dedicated home cinema applications.

System integration is supported through left and right line-level inputs and a dedicated LFE input. Line-level and high-pass outputs provide additional flexibility when integrating the S10 with stereo and home theatre electronics.

A 0° to 180° phase control helps align the subwoofer acoustically with the main speakers and listening position. Auto/On/Off sensing provides convenient power management, while a selectable 110–220V power arrangement supports different electrical installations.

The LiYA S10 is well suited to home theatres, stereo Hi-Fi systems, media rooms and other installations requiring strong low-frequency extension without the physical size of a larger 12-inch or 15-inch subwoofer.

• Dual 10″ Driver Architecture: Combines a 10-inch front-firing powered woofer with a 10-inch down-firing passive radiator for powerful low-frequency reproduction.
• 300W Class D Amplification: Integrated high-efficiency amplification provides the power required to control the large active woofer.
• Built-In DSP: Digital Signal Processing helps optimise the subwoofer’s low-frequency behaviour and overall system performance.
• 30Hz Bass Extension: Reaches down to 30Hz for cinematic effects, music and low-frequency ambience.
• 101dB Maximum SPL: Provides substantial bass output for home cinema and high-performance music systems.
• 10″ Down-Firing Passive Radiator: Reinforces low-frequency output without the airflow noise associated with conventional bass-reflex ports.
• Dedicated LFE Input: Allows straightforward connection to the subwoofer pre-out of compatible AV receivers and processors.
• Stereo Line-Level Inputs: Left and right line-level connections provide additional flexibility for stereo Hi-Fi systems.
• Line-Level and High-Pass Outputs: Support more flexible integration with other audio electronics and loudspeakers.
• 0°–180° Phase Control: Helps align the subwoofer with the main speakers and room acoustics for smoother bass integration.
• Auto Power Sensing: Automatically manages standby operation when an audio signal is detected or removed.
• 110–220V Voltage Selection: Supports use across different mains-voltage environments.

• Dedicated Home Theatre Systems
• 5.1 / 7.1 / Dolby Atmos Systems
• Two-Channel Stereo Hi-Fi
• Floorstanding and Bookshelf Speaker Systems
• Movie and Concert Playback
• Media Rooms
• Music Listening Rooms
• Premium Residential AV Installations
